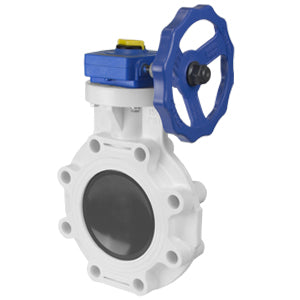

Spears 722321-080 8 PVC Butterfly Valve EPDM W/Gear OP

Product Description

The Spears 722321-080 is an eight-inch PVC butterfly valve designed for durability and reliability. This valve features a gear operator and can handle pressures up to 150 lb. The valve is suitable for both flow control and throttling applications, particularly in industrial and chemical processing settings.

• Gear actuator for easy operation
• Made from PVC with EPDM softgoods
• Patented design reduces wear and enhances performance

Product Highlights

This butterfly valve is engineered to eliminate seat creep and reduce operating torque while providing a positive seal-off.

Product Information

Standard Information

• Manufacturer: Spears
• MPN: 722321-080

Technical Specifications

• Size: 8 in
• Body Material: PVC
• Actuator Type: Gear
• Pressure Class: 150 lb
• Temperature Rating: 140 deg F
• Softgoods Material: EPDM

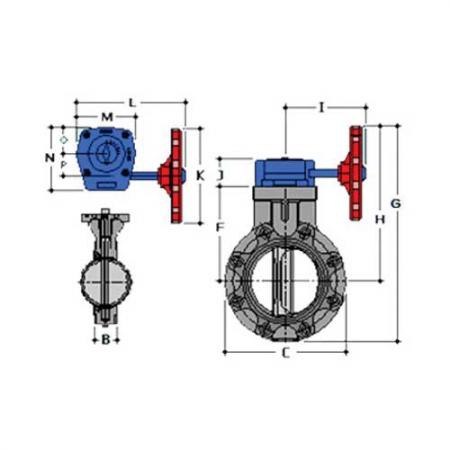

• Dimensions: 13-1/2 in Dia x 21-7/16 in H
• Inlet to Outlet Length: 2-15/16 in
• Top to Inlet Center: 14-11/16 in
