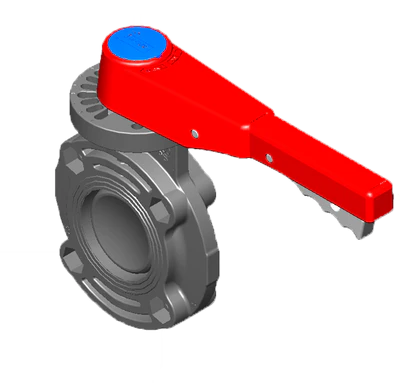

Spears 722311-080 8 PVC Butterfly Valve EPDM W/Handle

Product Description

The Spears 722311-080 is an eight-inch PVC butterfly valve featuring EPDM soft goods and a lever handle. This valve is designed for efficient flow control in various applications. The construction includes a durable PVC body and a stainless steel stem for strength and reliability. It operates effectively under a pressure class of 150 lb and temperature ratings up to 140 degrees Fahrenheit.

• Flanged end style for easy installation
• Interlocking body and seat prevent blow-outs
• High efficiency gear operator with a visual position indicator

Product Highlights

The valve is ideal for use in industrial and chemical processing, ensuring a positive seal-off and minimal operational torque, thanks to its unique design.

Product Information

Standard Information

• Manufacturer: Spears
• Material: PVC

Technical Specifications

• Nominal Size: 8 inches
• Actuator Type: Lever Handle
• Body Material: PVC
• Pressure Class: 150 lb
• Temperature Rating: 140 degrees Fahrenheit
• Inlet to Outlet Length: 2-31/32 inches
• Dimensions: 13-1/2 inches diameter x 18-5/8 inches high
• Softgoods Material: EPDM
