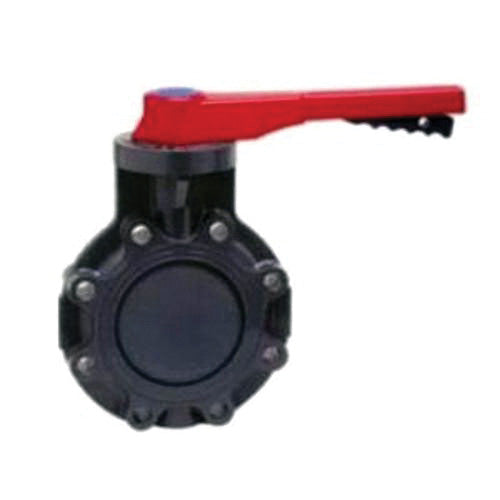

Spears 722311-060 6 PVC Butterfly Valve EPDM W/Handle

Product Description

The Spears Butterfly Valve, MPN 722311-060, is a six-inch valve designed for various applications. It is made from PVC with EPDM seals. The valve features a flanged end style and includes a lever handle for manual operation. The valve can handle a pressure rating of 150 pounds per square inch at seventy-three degrees Fahrenheit.

• Flanged end design for secure installation
• Lever handle for easy operation
• Stainless steel stem for durability

Product Highlights

This valve is suitable for potable water usage and features a patented limited contact seat design for enhanced performance.

Product Information

Standard Information

• Manufacturer: Spears
• MPN: 722311-060

Technical Specifications

• Nominal Size: 6 inches
• Body Material: PVC
• Stem Material: 316L Stainless Steel
• End Style: Flanged
• Pressure Rating: 150 psi at seventy-three degrees Fahrenheit
• Temperature Rating: 140 degrees Fahrenheit
• Dimensions: 11-1/16 inches diameter x 16-13/32 inches height
• Inlet to Outlet Length: 2-3/4 inches
• Softgoods Material: EPDM
