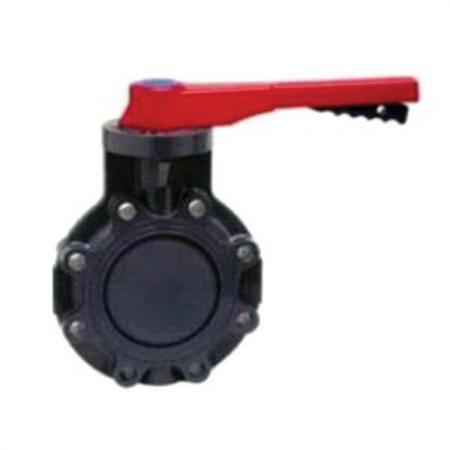

Spears 722311-030 PVC Schedule 80 Butterfly Valve, Lever Handle, EPDM, 3-Inch

Product Description

The Spears 722311-030 is a three-inch PVC Schedule 80 butterfly valve designed for easy operation. This valve features a lever handle for straightforward control and utilizes EPDM for reliable sealing. It's suitable for various applications, including industrial and potable water systems.

• 3-inch nominal size for standard piping.
• Butterfly design for minimal flow resistance.
• Pressure rated at 150 PSI for reliable performance.

Product Highlights

This valve provides efficient flow control and is ideal for plumbing and industrial applications.

Product Information

Standard Information

• Brand: Spears
• MPN: 722311-030

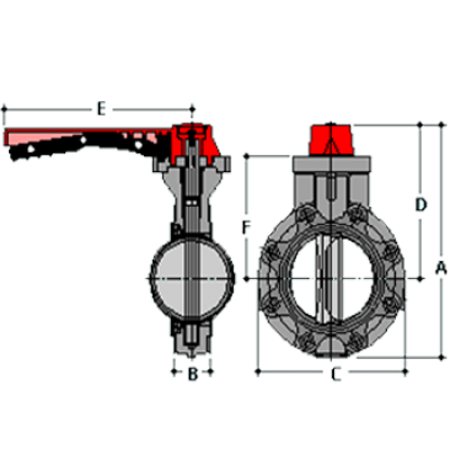

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: PVC
• Color: Gray
• Dimensions: 7.5 inches diameter x 11.5 inches height
• End Style: Flanged
• Inlet to Outlet Length: 2.09375 inches
• Nominal Size: 3 inches
• Pressure Class: 150 lb
• Softgoods Material: EPDM
• Stem Material: 316L Stainless Steel
• Temperature Rating: 140 degrees Fahrenheit
• Top to Inlet Center: 7.84375 inches
