Spears 722311-020 2 PVC Butterfly Valve EPDM W/Handle

Product Description

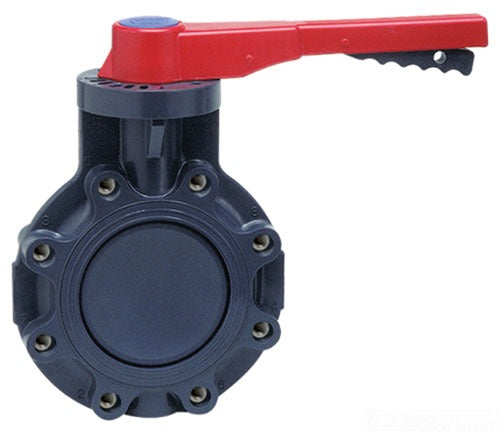

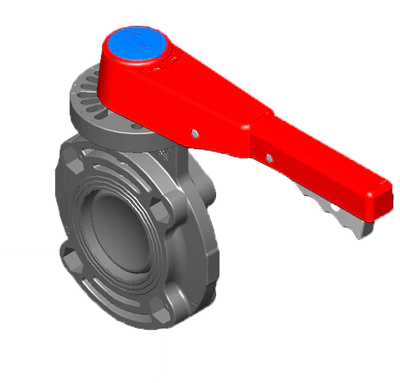

The Spears 722311-020 is a two-inch PVC butterfly valve with EPDM seals and a lever handle actuator. This valve is designed for strong performance in industrial and chemical processing applications. It features a flanged end style suitable for various piping systems.

• Pressure rated at 150 psi at seventy-three degrees Fahrenheit.
• Special off-set disc design reduces wear and operating torque.
• NSF certified for potable water use, ensuring safety and compliance.

Product Highlights

This valve is an effective solution for flow control and throttling, featuring a patented seat design that prevents seat creep and allows for easy field replacement without extensive disassembly.

Product Information

Standard Information

• Manufacturer: Spears
• MPN: 722311-020

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: PVC
• Softgoods Material: EPDM
• Pressure Class: 150 lb
• Temperature Rating: 140 degrees Fahrenheit
• Nominal Size: 2 inches
• Dimensions: 6 inches diameter x 9-11/32 inches height
• Inlet to Outlet Length: 1-15/16 inches
