Spears 721311G-060 6 PVC Lug Ins Bfv Buna W/Handle Ss/Lug

Product Description

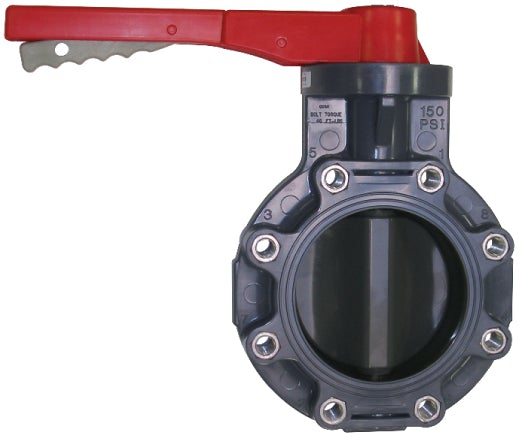

Spears 721311G-060 is a six-inch PVC lug insert butterfly valve designed for various piping applications. This valve features a lever handle actuator and is pressure rated to one hundred fifty pounds. The molded PVC body construction ensures durability. The 316L stainless steel stem and pin materials enhance its resistance to corrosion and provide reliability.

• Pressure rated to one hundred fifty psi at seventy-three degrees Fahrenheit.
• Field-replaceable seat design.
• Designed for ease of installation on either side.

Product Highlights

This butterfly valve is suitable for industrial applications, ensuring effective flow control. The special off-set disc design allows quick lifting from the seat, reducing wear and torque required to operate.

Product Information

Standard Information

• Brand: Spears
• MPN: 721311G-060

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: Molded PVC
• Color: Gray
• Dimensions: 11-1/16 in Dia
• Domestic/Import: Domestic
• Nominal Size: 6 in
• Pressure Class: 150 lb
• Softgoods Material: Buna-N
• Stem & Pin Material: 316L Stainless Steel (Stem)
• Top to Inlet Center: 10-7/8 in
• Type: Lug Insert
