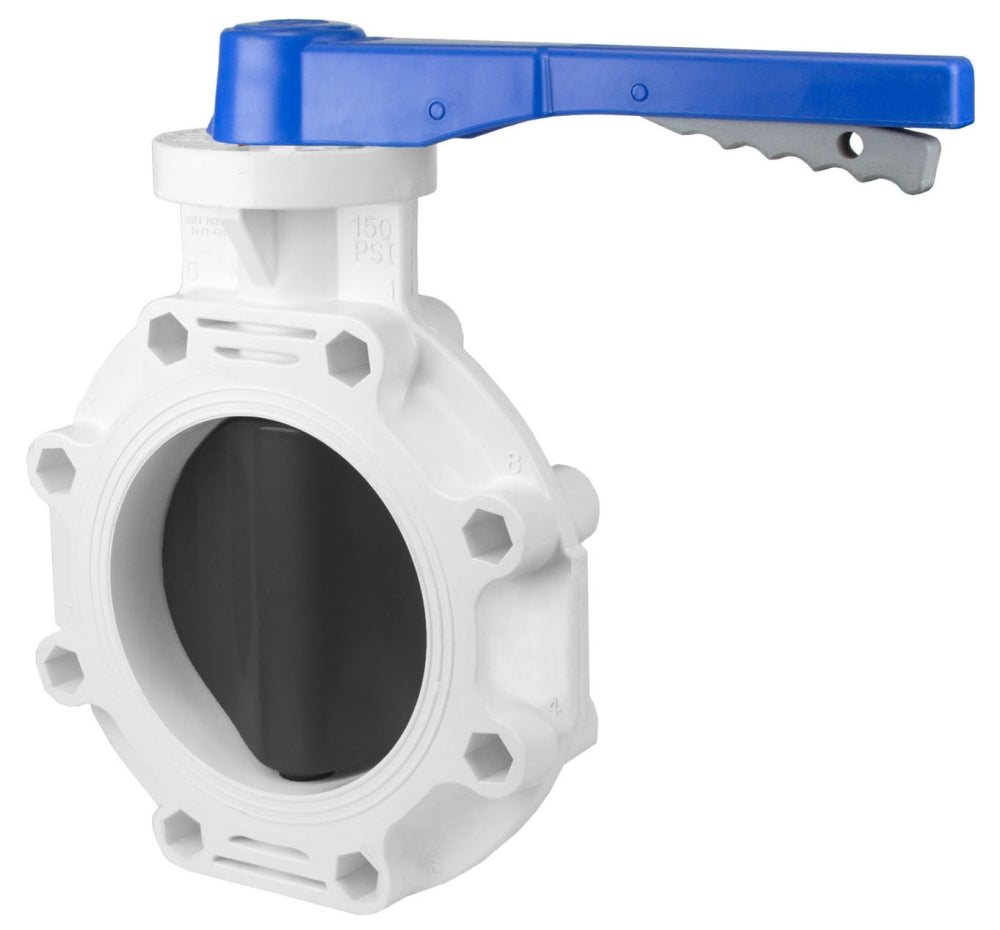

Spears 682311-060 6 PVC Pool Butterfly Valve W/HDL EPDM

Product Description

The Spears Manufacturing 682311-060 is a six-inch PVC pool butterfly valve designed for effective flow control in pool systems. This valve features a lever handle for easy actuation and is made from durable materials suitable for chlorinated water.

• Constructed from ASTM D1784 Class 12454 molded PVC.
• Includes a stem of 316 stainless steel for enhanced durability.
• Pressure rated to one hundred fifty PSI at seventy-three degrees Fahrenheit.

Product Highlights

This butterfly valve is suitable for both potable and chlorinated water. It meets NSF standards, making it ideal for residential and commercial pool applications.

Product Information

Standard Information

• Manufacturer: Spears Manufacturing
• UPC: 5421197477

Technical Specifications

• MPN: 682311-060
• Actuation Type: Lever Handle
• Nominal Size: 6 Inch
• End to End Distance: 2-3/4 Inch
• Body Material: ASTM D1784 Class 12454 Molded PVC
• Stem Material: 316 Stainless Steel
• Seat Material: EPDM
• Seal Material: EPDM O-Ring
• Disc Material: ASTM D1784 Class 12454 Molded PVC
• Handle Material: High Impact Polypropylene
• Temperature Rating: 140 Deg F
• Pressure Rating: 150 PSI at 73 Deg F
• Inclusions: PVC Handle Grip/Bushing, Polypropylene Grip/Lock Pin
• Application: Potable Water, Chlorinated Water
• Applicable Standard: NSF
• Color: White
