Spears 682311-030 3 PVC Pool Butterfly Valve W/HDL EPDM

Product Description

The Spears 682311-030 is a three-inch PVC pool butterfly valve designed for chlorinated water systems. This valve features a lever handle actuator for easy operation and has an inlet to outlet length of two and three thirty-seconds inches. The valve is rated for a pressure class of 150 lb and a temperature rating of 140 degrees Fahrenheit. The body is made of durable PVC material and includes a 316L stainless steel stem, ensuring compatibility with chlorinated water.

• Designed for chlorinated water applications
• Lever handle actuator for convenient operation
• High-quality PVC construction with EPDM seals

Product Highlights

This valve is essential for maintaining proper water flow in pool systems.

Product Information

Standard Information

• Brand: Spears
• MPN: 682311-030

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: PVC
• Color: White

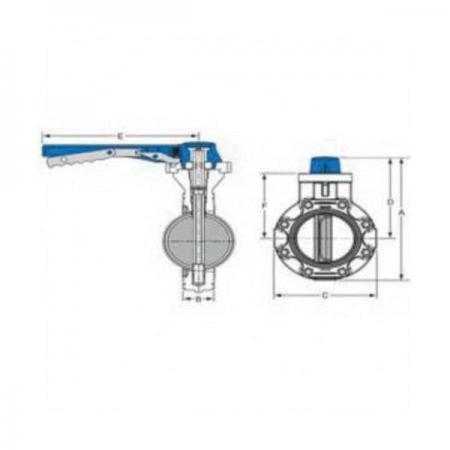

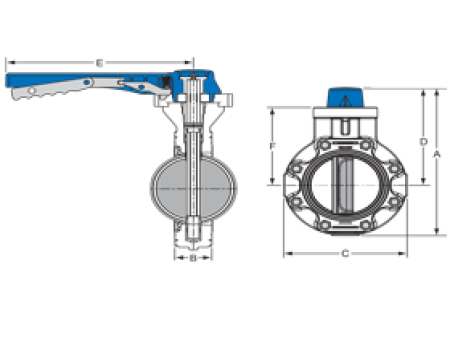

• Dimensions: 7-1/2 inches Diameter x 11-1/2 inches Height
• Domestic/Import: Domestic
• End Style: Flanged
• Inlet to Outlet Length: 2-3/32 inches
• Nominal Size: 3 inches
• Pressure Class: 150 lb
• Softgoods Material: EPDM
• Stem & Pin Material: 316L Stainless Steel (Stem)
• Temperature Rating: 140 degrees Fahrenheit
• Top to Inlet Center: 7-27/32 inches
• Type: Pool
