Spears 6621-012 1-1/4 PVC Compact 2000 Ball Vlv Thd EPDM

Product Description

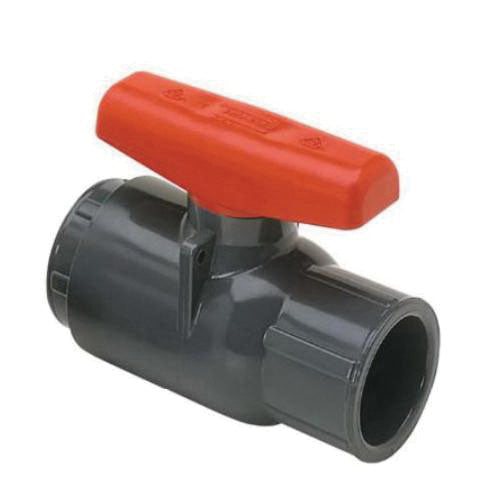

The Spears 6621-012 is a 1-1/4 inch PVC Compact 2000 Ball Valve designed for various plumbing applications. This ball valve is constructed from lead-free PVC, making it suitable for potable water use. It operates with a maximum pressure rating of 235 psi and features a threaded end style for easy installation.

• Leak-proof design with EPDM/FKM softgoods
• Closed construction for vacuum service capability
• Compatible with mini-mount actuator mounting kits

Product Highlights

This valve is recognized for its durability and reliability in both residential and industrial settings.

Product Information

Standard Information

• Manufacturer: Spears
• Model Number: 6621-012

Technical Specifications

• Ball Material: PVC
• Body Material: PVC
• Inlet to Outlet Length: 4-5/8 inches
• Top to Inlet Center: 2-13/16 inches
• Nominal Size: 1-1/4 inches
• Pressure Rating: 235 psi
• Series: Compact 2000
• Softgoods Material: EPDM/FKM
• End Style: FNPT
• Domestic/Import: Domestic
