SPEARS 65433 Clamp-On Pipe Saddle 6 x 3 in Nominal

Product Description

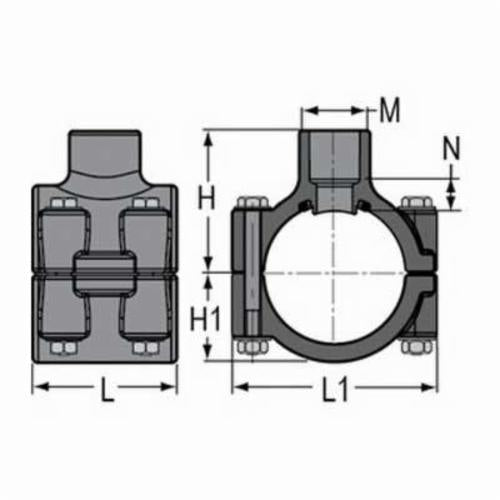

The SPEARS 65433 is a clamp-on pipe saddle with a nominal size of six by three inches. This product features a socket connection and includes a three-inch diameter hole. It is made with molded PVC and includes an EPDM O-ring seal for secure fitting. Zinc-plated bolts are also included for added durability. This saddle is designed for use with Schedule 80/XH pipe and maintains a pressure rating of 200 psi at seventy-three degrees Fahrenheit.

• Socket connection for easy installation.
• Includes EPDM O-ring seal and zinc plated hardware.
• Compatible with Schedule 80/XH pipe.

Product Highlights

The SPEARS 65433 clamp-on pipe saddle is ideal for connecting pipe sections efficiently. Its durable construction and reliable sealing capabilities make it a suitable choice for various plumbing applications.

Product Information

Standard Information

• Brand: SPEARS
• Weight: 4.41 lbs

Technical Specifications

• Nominal Size: 6 x 3 in
• Connection Type: 1-Socket
• Clamp Material: PVC
• Schedule Rating: SCH 80/XH
• Bolt Material: Zinc
• Color: Gray
• Dimensions: 7-15/16 in W
• Hole Diameter: 3 in
• Manufacturer Name: Spears Manufacturing
• Pressure Rating: 200 psi
• Temperature Rating: 73 deg F
• Type: Clamp-On
• Domestic/Import: Domestic
