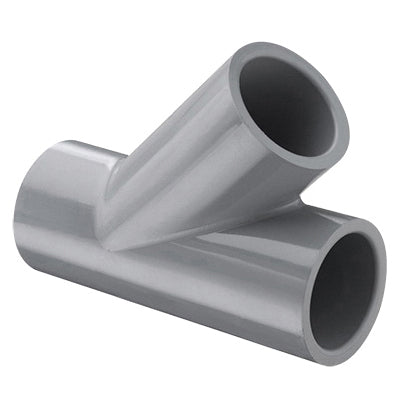

Spears 54211709542 Standard Wye 4 in Socket Sch 80 Cpvc

Product Description

The SPEARS 54211709542 is a 4-inch nominal CPVC standard wye fitting designed for socket-end connections in Schedule 80 pressure piping systems. Rated at 150 psi and molded from gray CPVC, this wye provides a reliable branch take-off in corrosive-fluid and industrial process applications where metal fittings are not suitable. At 11-25/32 inches in length and 5.31 pounds, the fitting is sized for permanent, solvent-welded installations. It is manufactured domestically to meet demanding commercial and industrial piping standards.

This wye is intended for use in Schedule 80 CPVC piping systems handling corrosive chemicals, industrial process fluids, or aggressive water treatment flows. The socket end style accepts CPVC pipe solvent-cemented into the fitting, making it appropriate for buried, concealed, or exposed systems where chemical resistance and pressure integrity are required. Plumbing and piping contractors working on industrial, commercial, or municipal projects are the primary installers of this fitting.

Key Features

• 4-inch nominal socket ends for solvent-weld assembly into SCH 80 CPVC pipe
• 150 psi pressure rating suitable for high-demand industrial and commercial systems
• CPVC material provides resistance to a broad range of corrosive chemicals
• Molded construction ensures uniform wall thickness and consistent joint geometry
• Domestically manufactured in the United States
• Gray color standard for SCH 80 CPVC piping systems

Compatibility

Designed as an OEM-style fitting for Schedule 80 CPVC socket-end piping systems with 4-inch nominal pipe diameter.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter following applicable IPC and local plumbing code requirements. Shut off and depressurize the system completely before cutting into existing lines. Use only CPVC-rated solvent cement and primer formulated for SCH 80 fittings, and allow full cure time before restoring pressure. Do not exceed the 150 psi pressure rating or the 73 degrees F temperature rating specified for this fitting.

Technical Specifications

• Fitting Type: Standard Wye
• Nominal Size: 4 inches
• End Style: Socket
• Schedule Rating: SCH 80/XH
• Pressure Rating: 150 psi
• Temperature Rating: 73 degrees F
• Length: 11-25/32 inches
• Weight: 5.31 pounds
• Material: CPVC
• Color: Gray
• Method of Manufacture: Molded
• Country of Origin: US

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: 54211709542
