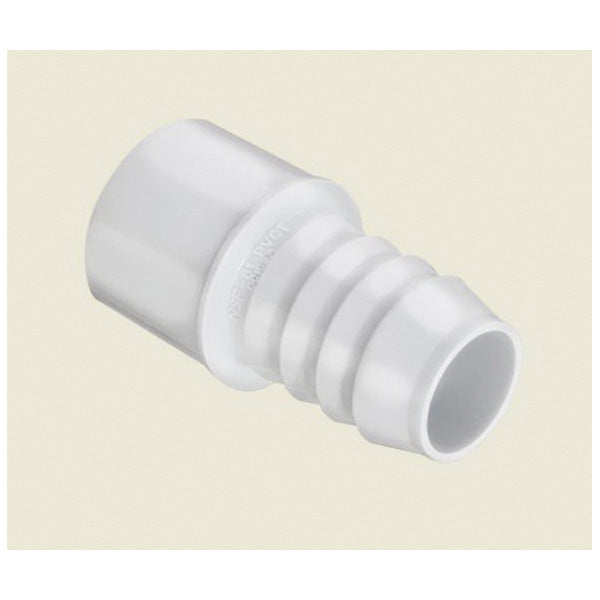

Spears 54211193556 Pvc Adapter 3 Inch Sch 40

Product Description

The SPEARS 54211193556 is a 3-inch nominal PVC standard adapter fitting with an insert by spigot end style, rated for SCH 40/STD service. Manufactured in the United States from PVC Type I with a cell classification of 12454, this fitting meets ASTM D1784 and is produced according to ASTM D2609 for use with polyethylene pipe meeting ASTM D2239. The molded white PVC construction measures 4-17/32 inches in length and carries NSF certification for potable water service. Plumbers and pipe system contractors install this fitting to transition between insert-style connections and spigot-style pipe ends in residential and commercial plumbing systems.

This adapter is suited for residential and commercial potable water distribution systems where a transition between an insert connection and a spigot end is required. The SCH 40/STD schedule rating makes it appropriate for standard-pressure water service piping. It is produced domestically by Spears Manufacturing and is commonly installed in new construction and retrofit applications involving polyethylene supply lines connecting to PVC distribution piping.

Key Features

• 3-inch nominal size with insert x spigot end style for polyethylene-to-PVC transitions
• SCH 40/STD schedule rating suitable for standard-pressure water service
• PVC Type I material, cell classification 12454, meeting ASTM D1784
• NSF certified for potable water service
• Molded construction for consistent dimensional accuracy
• Domestically manufactured in the United States

Compatibility

Designed for use with polyethylene pipe produced to ASTM D2239 on the insert end and standard spigot-end PVC pipe or fittings on the spigot end, per ASTM D2609 manufacturing standards.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC requirements. Shut off the water supply and relieve system pressure completely before cutting into any existing line. Insert fittings typically require stainless steel clamps or barbed retention methods per the applicable standard — follow ASTM D2609 installation guidelines and the pipe manufacturer's recommendations. Do not exceed the pressure or temperature ratings for the connected piping system.

Technical Specifications

• Nominal Size: 3 inches
• End Style: Insert x Spigot
• Schedule Rating: SCH 40/STD
• Length: 4-17/32 inches
• Weight: 0.57 pounds
• Material: PVC Type I, Cell Classification 12454
• Color: White
• Method of Manufacture: Molded
• Country of Origin: United States
• Standards and Approvals: ASTM D1784, ASTM D2239, ASTM D2609, NSF Approved

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: 54211193556
