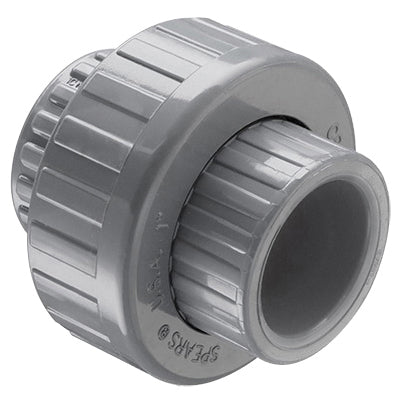

Spears 54211191569 Cpvc Union 1-1/2 in Socket Sch 80

Product Description

The SPEARS 54211191569 is a Schedule 80 CPVC union fitting designed for use in high-pressure industrial and commercial piping systems. Built for 1-1/2 inch nominal pipe, it uses socket-style end connections and a FKM O-ring seal to deliver a reliable, leak-resistant joint. The fitting is pressure-rated to 235 psi and temperature-rated at 73 degrees F. Manufactured domestically by Spears Manufacturing using a molded process, it is constructed entirely of CPVC for compatibility with corrosive fluid handling applications. Licensed plumbers and pipefitters install this fitting where the line must be broken for maintenance, equipment removal, or system modification.

This union is suited for chemical process lines, industrial water treatment systems, and corrosive fluid piping where a Schedule 80 CPVC fitting is specified. The socket end style allows solvent-cement connections to standard SCH 80 CPVC pipe. The FKM O-ring seat provides a positive shutoff at the union joint and is compatible with a wide range of aggressive media. The gray coloring is standard for CPVC Schedule 80 fittings and aids visual identification during inspection.

Key Features

• Schedule 80/XH CPVC construction rated to 235 psi
• FKM O-ring seal at union joint for leak-resistant disassembly and reassembly
• Socket end style for solvent-cement connection to SCH 80 CPVC pipe
• Molded construction for consistent wall thickness and dimensional accuracy
• Domestically manufactured in the United States
• Gray color standard for SCH 80 CPVC identification

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 80 CPVC piping systems using 1-1/2 inch nominal socket connections.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable plumbing codes such as the IPC. Depressurize and drain the line completely before removing or installing any union fitting. Use only CPVC-rated solvent cement on socket connections and allow full cure time before returning the system to service. Do not exceed the published pressure or temperature ratings for this fitting.

Technical Specifications

• Nominal Size: 1-1/2 inches
• End Style: Socket
• Schedule Rating: SCH 80/XH
• Pressure Rating: 235 psi
• Temperature Rating: 73 degrees F
• Length: 3-3/32 inches
• Material: CPVC
• Seal Material: FKM O-Ring
• Color: Gray
• Method of Manufacture: Molded
• Weight: 0.64 pounds
• Country of Origin: US

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: 54211191569
