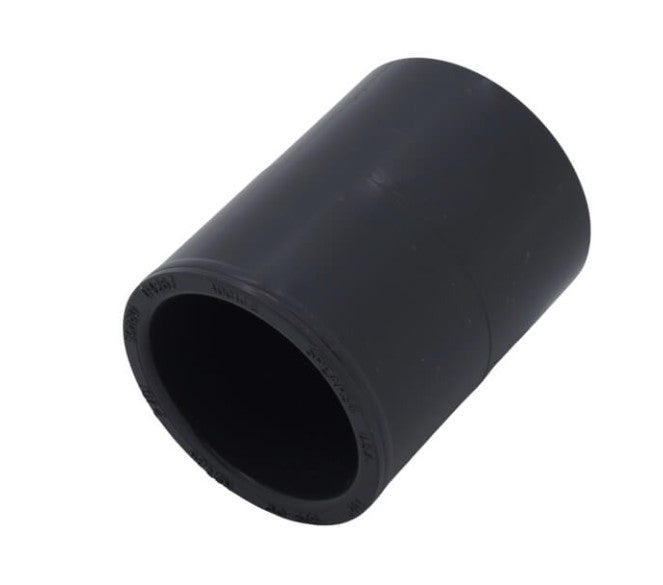

Spears 54211168493 Pvc Coupling 1-1/4 in Socket Sch 80 150 Psi

Product Description

The SPEARS 54211168493 is a standard PVC socket coupling rated for Schedule 80/XH service at 150 psi non-shock pressure. It is injection-molded from PVC Type I, cell classification 12454, conforming to ASTM D1784 and ASTM D2467. At 1-1/4 inch nominal size with a 2-11/16 inch overall length and 2-7/32 inch OD, this fitting is sized for direct socket connection in pressurized piping systems. Plumbers and pipefitters install this coupling to join same-diameter pipe runs or restore continuity in PVC pressure lines. The gray color is standard for SCH 80 PVC fittings, making it easy to distinguish from lower-schedule components in the field.

This coupling is suited for residential and commercial plumbing, industrial process piping, and irrigation systems where SCH 80 PVC is specified. It is certified for potable water service by NSF International, making it appropriate for domestic water supply applications. The socket end style accepts solvent-cemented connections using standard PVC primer and cement. Typical install scenarios include pressure line repairs, new construction rough-in, and chemical handling systems where PVC's corrosion resistance is required.

Key Features

• SCH 80/XH pressure rating at 150 psi non-shock at 73 degrees F
• NSF certified for potable water service per ASTM D2467
• Injection-molded PVC Type I, cell classification 12454 per ASTM D1784
• Socket end style for solvent-cement connection
• Domestically manufactured in the United States
• Gray color consistent with SCH 80 PVC system identification

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/4 inch Schedule 80 PVC piping systems in plumbing, irrigation, and industrial pressure applications.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters. Depressurize and drain the line fully before cutting into any existing piping. Use a PVC primer and solvent cement rated for SCH 80 service, and allow full cure time before repressurizing per the cement manufacturer's instructions. Installations on potable water systems must comply with applicable local plumbing codes and NSF requirements.

Technical Specifications

• Nominal Size: 1-1/4 inches
• Pressure Rating: 150 psi non-shock at 73 degrees F
• Schedule Rating: SCH 80/XH
• End Style: Socket
• Overall Length: 2-11/16 inches
• OD Dimensions: 2-7/32 inches
• Weight: 0.23 pounds
• Material: PVC Type I, Cell Classification 12454
• Color: Gray
• Method of Manufacture: Injection Molded
• Country of Origin: United States
• Standards and Approvals: ASTM D1784, ASTM D2467, ANSI B16.5, NSF Potable Water Certified

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: 54211168493
