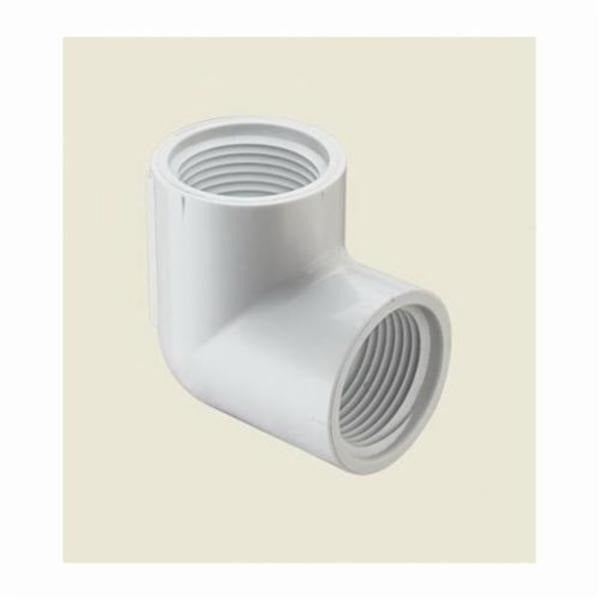

Spears 54211165621 Pvc 90 Deg Elbow 2 in Fnpt Sch 40

Product Description

The SPEARS 54211165621 is a molded PVC 90-degree threaded elbow rated for Schedule 40 service. It accepts female NPT connections on both ends at a nominal size of 2 inches, making it a standard fitting for redirecting flow in threaded piping systems. Rated to 140 degrees F, this white PVC elbow handles typical cold- and hot-water distribution, irrigation, and light-duty industrial plumbing. Domestic manufacture means consistent wall thickness and thread form. Plumbers and pipefitters reach for this fitting when routing runs through tight spaces or making 90-degree direction changes in plastic piping systems.

This elbow is used in residential and light commercial plumbing, irrigation systems, pool and spa piping, and general water distribution where threaded PVC connections are specified. The FNPT end style allows direct threaded engagement with male NPT fittings and pipe, which is common in above-ground and in-wall applications. The SCH 40 wall thickness meets standard pressure ratings for typical domestic water service conditions.

Key Features

• 90-degree elbow geometry for right-angle direction changes in threaded piping runs
• Female NPT (FNPT) threads on both ends for standard threaded pipe engagement
• Schedule 40 wall thickness meets standard pressure rating requirements for PVC pipe systems
• PVC construction resists corrosion and is compatible with water, many chemicals, and common irrigation fluids
• 140 degrees F temperature rating suitable for cold- and warm-water service
• Molded domestic construction for consistent thread quality and dimensional accuracy

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 2-inch Schedule 40 threaded PVC piping systems using NPT-standard connections.

Installation Notes

Installation is performed by licensed plumbers or experienced pipefitters. Apply an appropriate PTFE tape or thread sealant rated for PVC to all male NPT threads before engagement — do not over-tighten, as PVC threads can crack under excessive torque. Depressurize and drain the piping system fully before removing or installing any threaded fitting. Follow applicable IPC and local plumbing code requirements for plastic pipe use in potable water or other regulated service.
