Spears 54211157947 Pvc Reducing Bushing 1-1/4x3/4 Sch 80

Product Description

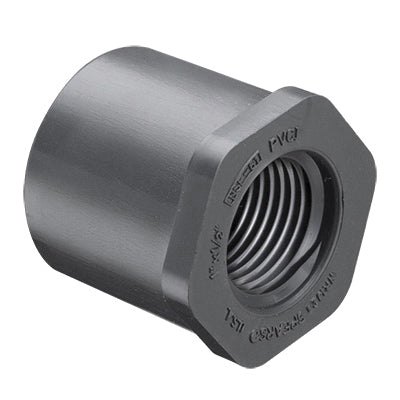

The SPEARS 54211157947 is a Schedule 80 PVC reducing bushing designed to transition between 1-1/4 inch and 3/4 inch pipe connections in pressure-rated piping systems. The fitting connects with a spigot on the male end and female NPT threads on the smaller end, allowing it to step down pipe size within a threaded or solvent-weld assembly. Molded from gray PVC, it measures 1-7/16 inches in length and weighs 0.09 pounds. Licensed plumbers and pipefitters install this type of fitting in chemical, irrigation, water distribution, and industrial process lines where a durable, corrosion-resistant reduction is needed.

This reducing bushing is suited for residential and commercial plumbing systems, industrial process piping, and irrigation applications that call for Schedule 80 pressure ratings. The spigot end mates with a Schedule 80 PVC socket fitting using solvent cement, while the FNPT end accepts a male-threaded pipe or fitting. It is manufactured domestically in the United States and carries the SCH 80/XH schedule designation for higher-pressure service compared to Schedule 40 components.

Key Features

• Reduces from 1-1/4 inch to 3/4 inch nominal pipe size in a single fitting
• Spigot x FNPT end configuration for solvent-weld to threaded transitions
• Schedule 80/XH rating for elevated pressure service
• Molded gray PVC construction — corrosion-resistant and chemically compatible with a wide range of media
• Compact 1-7/16 inch body length minimizes assembly footprint
• Domestically manufactured in the United States

Compatibility

Designed as an OEM-style replacement or new-installation component for Schedule 80 PVC piping systems requiring a 1-1/4 inch spigot to 3/4 inch FNPT reducing connection.

Installation Notes

Installation is performed by a licensed plumber or qualified pipefitter following applicable IPC and local plumbing code requirements. Depressurize and drain the line completely before cutting into any existing piping. Apply an approved PVC primer and solvent cement to the spigot end per the cement manufacturer's instructions, and use an appropriate thread sealant on the FNPT connection. Do not over-torque threaded connections on PVC fittings, as the material is not rated for the same mechanical stress as metal pipe.

Technical Specifications

• Nominal Size: 1-1/4 x 3/4 inches
• End Style: Spigot x FNPT
• Schedule Rating: SCH 80/XH
• Length: 1-7/16 inches
• Weight: 0.09 pounds
• Material: PVC
• Color: Gray
• Method of Manufacture: Molded
• Country of Origin: United States

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: 54211157947
