Spears 54211051429 Pvc Reducing Bushing Sch 80 1x1/4 in

Product Description

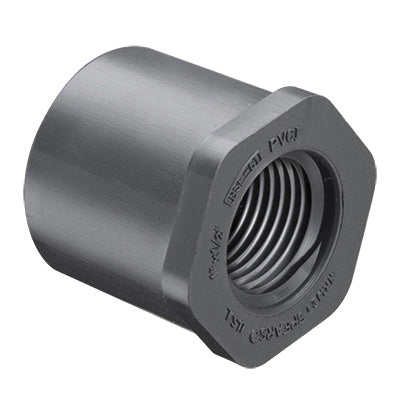

The SPEARS 54211051429 is a Schedule 80 PVC reducing bushing designed for use in pressure piping systems where a 1-inch line must transition down to a 1/4-inch female threaded connection. The fitting measures 1-13/32 inches in length and connects with a spigot inlet on one end and a female NPT (FNPT) outlet on the other. Molded from gray PVC, it carries a Schedule 80/XH pressure rating and meets ASTM D1784/D2467 and ANSI B16.5 standards. Licensed plumbers and pipefitters install this type of bushing in chemical, industrial, and commercial plumbing applications where corrosion resistance and pressure integrity are required.

This reducing bushing is suited for residential and commercial plumbing, irrigation, chemical processing, and industrial fluid-handling systems where PVC pressure fittings are specified. The spigot end inserts into a Schedule 80 socket fitting, while the FNPT end accepts a male-threaded pipe or fitting. It is commonly installed in compact piping assemblies that require a threaded reduction in a limited space. The domestic manufacture and compliance with ASTM and ANSI standards make it appropriate for inspected installations.

Key Features

• Schedule 80/XH pressure rating for higher-pressure PVC piping systems
• Spigot x FNPT end configuration for socket-to-thread transitions
• 1-13/32 inch molded length in a compact form factor
• Gray PVC construction resists corrosion, chemicals, and moisture
• Meets ASTM D1784/D2467 and ANSI B16.5 standards
• Domestically manufactured in the United States

Compatibility

Designed as an OEM-style Schedule 80 PVC pressure fitting for 1 x 1/4 inch nominal reducing bushing applications in standard PVC pressure piping systems.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable IPC and local plumbing codes. Depressurize and drain the system completely before removing or installing any fitting. The spigot end requires PVC solvent cement applied per manufacturer instructions for the socket connection; the FNPT end requires compatible male-threaded pipe or fittings with appropriate thread sealant. Do not over-torque threaded connections on PVC fittings, as this can crack the fitting body.

Technical Specifications

• Nominal Size: 1 x 1/4 inches
• End Style: Spigot x FNPT
• Schedule Rating: SCH 80/XH
• Length: 1-13/32 inches
• Material: PVC
• Color: Gray
• Method of Manufacture: Molded
• Weight: 0.07 pounds
• Standards and Approvals: ASTM D1784/D2467 and ANSI B16.5
• Country of Origin: United States

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: 54211051429
