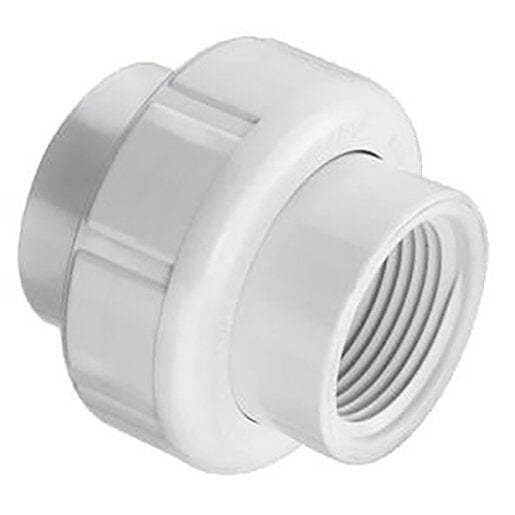

Spears 458-010 PVC Union Fptxfpt Buna Sch40 1 in

Product Description

The SPEARS 458-010 PVC Union allows for creating a disassemblable connection in a 1" PVC pipe. It features FIP (female threaded) connections on both outlets and a Buna-N (NBR) O-ring gasket material. This union is certified for potable water service by NSF and meets ASTM D2466 standards.

• Unlike metal, PVC fittings never rust, scale or pit, providing years of maintenance-free service.
• PVC thermoplastic handles fluids at service temperatures up to 140 deg F.
• Manufactured in accordance with ASTM D2466 standard.

Product Highlights

The Spears PVC union provides a secure and leak-free connection for potable water systems, certified by NSF and compliant with ASTM standards.

Product Information

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: 458-010
• Country of Origin: USA

Technical Specifications

• Item Number: 458-010
• Brand: Spears
• Category: Union
• Joint: Union - Fipt/Buna
• O-Ring: FIPT x FIPT with Buna O-ring Seal
• Size: 1 in
• Subcategory: PVC Schedule 40 Fittings
• Type: Union
• End Style: FNPT
• Material: PVC
• Max temperature: 140°F
• O-ring Material: Buna-N (NBR)
• Standard: ASTM D2466
• Connection Type: Fipt
• Fitting Type: PVC Sch 40
• Connection 2 Size: 1 in.
• Connection 2 Type: Fipt
• Lead Free: Yes
• Maximum Operating Pressure: 150 PSI
• Maximum Working Temperature: 140 F
• Connection Size: 1 in.
• Regulated: No
