Product Description

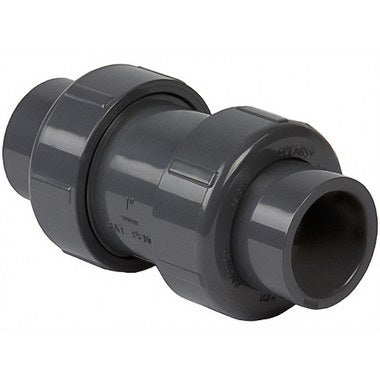

The Spears 4539-012C is a check valve designed for 1-1/4 inch CPVC true union socket and threaded applications. It is part of the true union 2000 industrial series. This valve is suitable for media such as water, operating at a pressure rating of 235 PSI and a temperature of seventy-three degrees Fahrenheit.
- Constructed with chemical and corrosion-resistant CPVC material
- Features socket and threaded ends for easy installation
- Includes FKM seal material for durability
Product Highlights
This valve provides reliable performance in industrial applications. It is designed to be serviceable and features a standard O-ring seat. The Spears 4539-012C can be used for both horizontal and vertical installations.
Product Information
Standard Information
-
Brand: Spears
-
Part Number: 4539-012C
Technical Specifications
-
Material: CPVC
-
Pressure Rating: 235 PSI
-
Seal Material: FKM
-
End Connection: Socket/Threaded
-
Temperature Rating: 73 degrees Fahrenheit
-
Size: 1-1/4 inches
-
End to End Distance: 5-3/4 inches
-
Application: Industrial
-
Shipping Weight: 3.000 lbs
