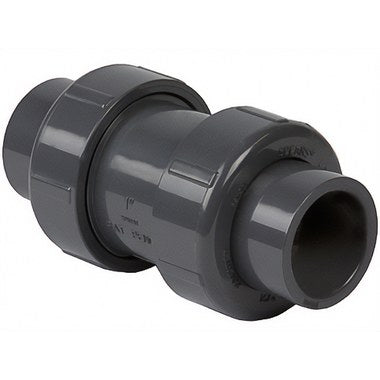

Spears 4539-007 3/4 PVC TU2K INDBALCHKVLV SOC/FPT FKM

Product Description

The Spears 4539-007 is a 3/4 inch PVC True Union Ball Check Valve designed for efficient flow control. This valve features a socket and FNPT end style, rated for a pressure of 235 psi at seventy-three degrees Fahrenheit, making it suitable for water media applications. The valve is equipped with FKM softgoods and has a total inlet to outlet length of four and three-quarters inches.

• Chemical and corrosion resistant PVC construction
• Operable in horizontal and vertical installations
• Assembled with silicone-free, water-soluble lubricant

Product Highlights

This ball check valve is fully serviceable, with replaceable components and a robust construction that withstands various operating conditions. Its design includes a Safe-T-Blocked seal carrier and a standard O-ring seat.

Product Information

Standard Information

• Brand: Spears
• MPN: 4539-007

Technical Specifications

• Ball Material: PVC
• Body Material: PVC
• Dimensions: 2-9/32 inches high
• Inlet to Outlet Length: 4-3/4 inches
• Media: Water
• Nominal Size: 3/4 inch
• Pressure Rating: 235 psi
• Temperature Rating: 73 degrees Fahrenheit
• Type: True Union 2000 Industrial
