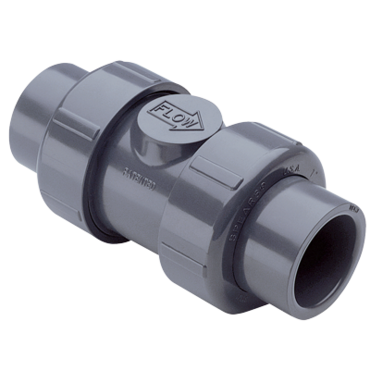

Spears 4522040 4 PVC TU2K IND BALL CHECK SOC EPDM

Product Description

The Spears 4522040 is a four-inch ball check valve designed for industrial applications. It features a true union design which allows for easy installation and maintenance. This valve is made from PVC for chemical and corrosion resistance, ensuring durability in various conditions.

• Socket connection for straightforward installation
• Pressure rated up to 235 psi
• EPDM soft goods for reliable sealing

Product Highlights

Designed for both horizontal and vertical installations, this valve is fully serviceable and can withstand vacuum applications.

Product Information

Standard Information

• Brand: Spears
• MPN: 4522040

Technical Specifications

• Nominal Size: 4 inches
• Media: Water
• Body Material: PVC
• Ball Material: PVC
• Softgoods Material: EPDM
• Pressure Rating: 235 psi
• Dimensions: 7.5 inches height, 11-13/16 inches inlet to outlet length
• Temperature Rating: 73 degrees F
• End Style: Socket
• Domestic/Import: Domestic
• Type: True Union 2000 Industrial
