Spears 438-207 Flush Bushing 1-1/2 x 1/4 in

Product Description

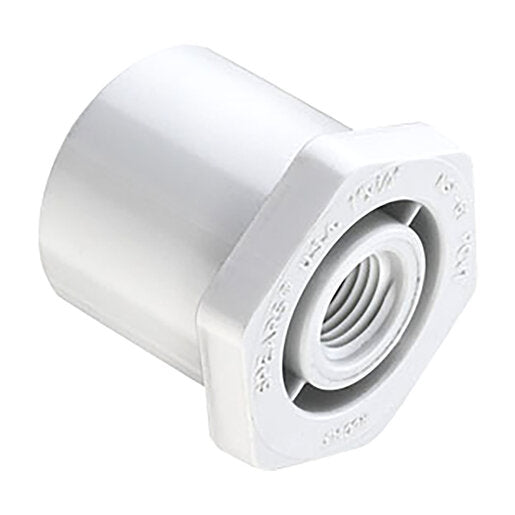

The Spears 438-207 flush bushing fitting/connector measures 1-1/2 x 1/4 inches with a spigot x FNPT end style and a length of 1-19/32 inches. Constructed from PVC with a molded method of manufacture, it is suitable for SCH 40 schedules. It provides exceptional chemical and corrosion resistance and is NSF approved.

• Exceptional chemical and corrosion resistance
• High temperature ratings
• Lower installation costs
• Higher flow capacity
• Additional fabricated configurations through 36 in
• Advanced design specialty fittings

Product Highlights

Durable PVC construction, chemical and corrosion resistance, and high-temperature ratings make this fitting ideal for various applications.

Product Information

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: 438-207
• Country of Origin: US

Technical Specifications

• Color: White
• Domestic/Import: Domestic
• End Style: Spigot x FNPT
• Fitting/Connector Type: Bushing
• Length: 1-19/32 in
• Material: PVC
• Method of Manufacture: Molded
• Nominal Size: 1-1/2 x 1/4 in
• Schedule Rating: SCH 40/STD
• Type: Flush
• Manufacturer: Spears
• Item Weight (lbs): 0.18 lbs
• Max temperature: 140°F
• Product Group: Schedule 40 PVC Fitting
• Manufacturer's part number: 438-207
• Classification: Schedule 40
• Connections: Spg x FPT
• Weight (lb): 0.132
• Connection Type: Spigot
• Fitting Type: PVC Sch 40
• Connection 2 Size: 1/4 in.
• Connection 2 Type: Fipt
• Weight: 0.13 lb.
• Maximum Working Temperature: 140 F
• Item: Bushing
• Regulated: No
• Brand Name: Spears
• Standards and Approvals: ASTM D1784 | ASTM D2466 | NSF Approved
