Spears 4257-010 FlameGuard SCH 40 and SCH 80 Orange CPVC Union with FKM O-ring, 1 in

Product Description

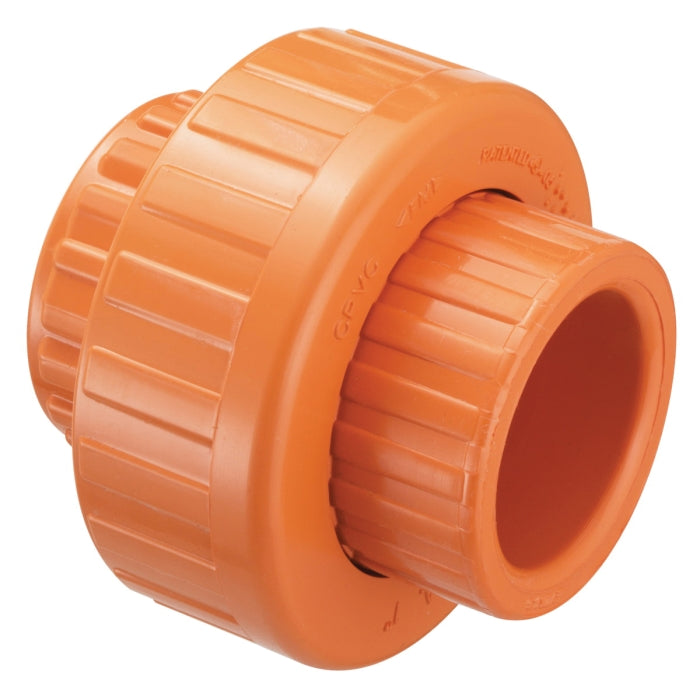

The Spears 4257-010 is a FlameGuard SCH 40 and SCH 80 orange CPVC union designed for fire sprinkler systems. This product features a one-inch socket connection and comes with an FKM O-ring for a secure fit.

• Corrosion-resistant CPVC material
• Compatible with various fire sprinkler systems
• Easy installation with common tools

Product Highlights

This CPVC union is built to provide a reliable solution for fire protection applications.

Product Information

Standard Information

• Brand: Spears
• Part Number: 4257010

Technical Specifications

• Color: Orange
• Connection Size: 1 in
• Connection Type: Socket
• Item Name: Union with FKM O-ring
• Length: 2-9/16 in
• Material: CPVC
• Pressure Rating: 175 psi
• Temperature Rating: 150 deg F
• Schedule: SCH 40, 80
• Method of Manufacturer: Injection Molded
• Material Specifications: ASTM D1784 Cell Classification of 23447, ASTM F438 or ASTM F439
• Standards/Certifications: UL listed, LPCB, FM approved, NSF 14 and 61 certified, NFPA 13, 13R, 13D and 24 standard
• Applications: For fire sprinkler systems
