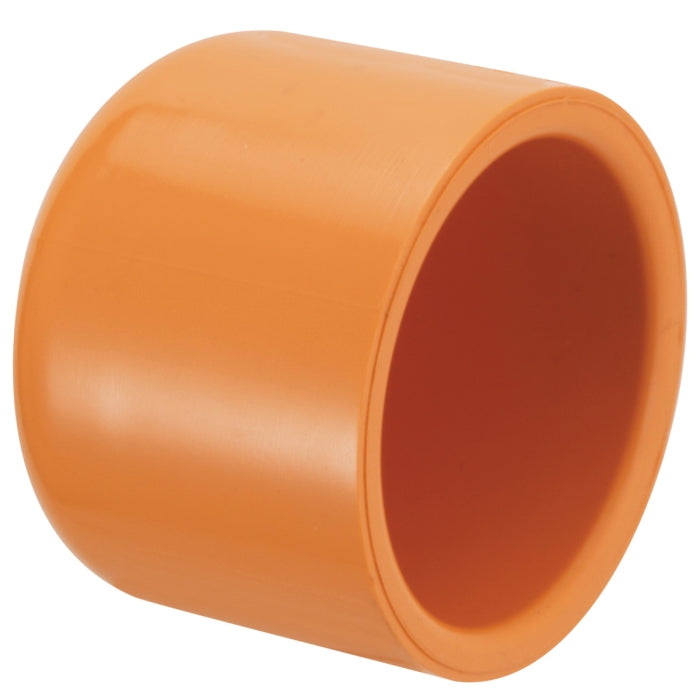

Spears 4247-020 2 CPVC FlameGuard Cap SOC

Product Description

The Spears 4247-020 is a 2 inch CPVC FlameGuard Cap designed for fire sprinkler systems. This socket-type cap is molded from CPVC, making it a suitable alternative to metal fittings. It provides corrosion resistance and operates efficiently at pressures up to 175 psi. The cap measures 2-27/32 inches in length and has a width of 2-9/32 inches.

• Corrosion-resistant CPVC material
• Rated for pressures up to 175 psi
• Temperature rating up to 150 degrees Fahrenheit

Product Highlights

Ideal for fire protection applications, this cap is crafted for easy installation and can be assembled using basic tools. The Spears FlameGuard products meet strict standards and have been trusted for over 40 years.

Product Information

Standard Information

• Manufacturer: Spears
• Material: CPVC

Technical Specifications

• Nominal Size: 2 in
• End Style: Socket
• Length: 2-27/32 in
• Pressure Rating: 175 psi
• Temperature Rating: 150 deg F
• Color: Orange
• Standards/Certifications: UL listed, LPCB, FM approved
