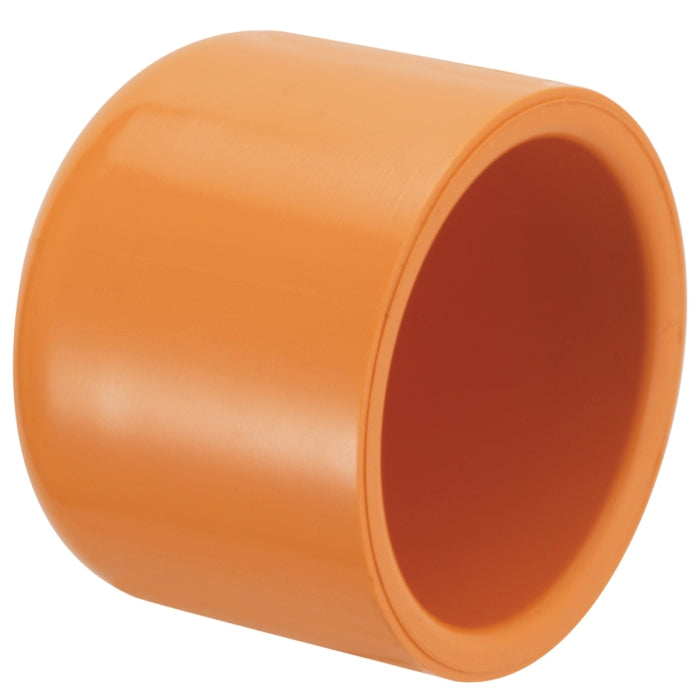

Spears 4247-012 1-1/4 CPVC FlameGuard Cap SOC

Product Description

The Spears 4247-012 is a 1-1/4 inch CPVC FlameGuard Cap designed for socket connection. This cap is part of Spears’ FlameGuard series that meets stringent fire safety standards.

• Pressure rating up to 175 psi
• Temperature rated for use up to 150 degrees Fahrenheit
• Manufactured using ASTM compliant CPVC material

Product Highlights

This cap is suitable for fire sprinkler systems and is recognized for its high corrosion resistance. It is easy to install and can be assembled quickly with common tools.

Product Information

Standard Information

• Brand: Spears
• Manufacturer: Spears Manufacturing

Technical Specifications

• Color: Orange
• Nominal Size: 1-1/4 inches
• Length: 2-3/32 inches
• Width: 1-27/32 inches
• Material: CPVC
• End Style: Socket
• Pressure Rating: 175 psi
• Temperature Rating: 150 degrees Fahrenheit
• Connection Type: Socket
• Method of Manufacture: Molded
• Standards/Certifications: UL listed, LPCB, FM approved, NSF 14 and 61 certified, NFPA 13, 13R, 13D, and 24 standard
