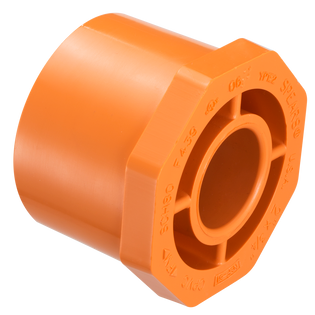

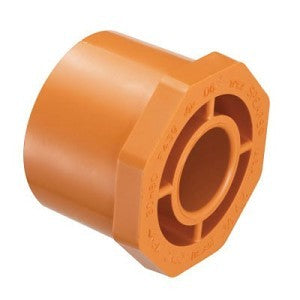

SPEARS 4237-339 FlameGuard Flush Style Reducer Bushing 3 inches X 2-1/2 inches

Product Description

The SPEARS 4237-339 FlameGuard Flush Style Reducer Bushing is designed for reliable performance in CPVC fire sprinkler systems. This reducer bushing features a three-inch by two-and-a-half-inch sizing with a spigot x socket end style. It serves as an economical choice compared to metal alternatives, while offering superior corrosion resistance and supporting better system hydraulics.

• Cost effective alternative to metal systems
• High corrosion resistance
• Improved system hydraulics

Product Highlights

This product is easy to install and can be assembled quickly using standard tools. It also meets rigorous approvals from UL®, FM®, and LPCB, ensuring it is a trusted choice for professionals.

Product Information

Standard Information

• Fitting/Connector Type: Bushing
• Nominal Size: 3 x 2-1/2 inches

Technical Specifications

• End Style: Spigot x Socket
• Series: FlameGuard®
• Length: 2-5/16 inches
• Material: CPVC
• Method of Manufacture: Molded
• Pressure Rating: 175 psi
• Temperature Rating: 150 degrees F
• Brand: Spears®
• Domestic/Import: Domestic
