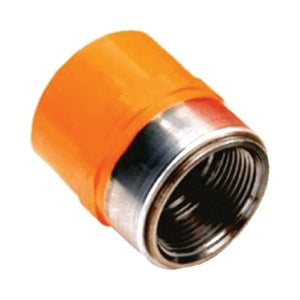

Spears 4235-130GS 1X1/2 CPVC FEM HEAD ADAPT W/GSK SOCXTHD

Product Description

The Spears 4235-130GS is a CPVC female head adapter designed for fire sprinkler systems. This fitting connects a one-inch by half-inch pipe to a socket with a gasket and features a high corrosion resistance. The molded design provides durability and a tight seal for reliable performance.

• Pressure rating of one hundred seventy-five psi
• Temperature tolerance up to one hundred fifty degrees Fahrenheit
• Compatible with SCH 40 and SCH 80 pipes

Product Highlights

The Spears 4235-130GS is ideal for sprinkler systems, providing an easy installation process and exceptional flow characteristics. The component is made from quality CPVC material, which does not support biological growth, ensuring the system's longevity.

Product Information

Standard Information

• Manufacturer: Spears
• Material: CPVC

Technical Specifications

• Color: Orange
• Dimensions: 1-11/16 in width
• Length: 2-1/32 in
• Seal Material: Elastomer
• Connection Type: Socket x FNPT Gasket
• Nominal Size: 1 x 1/2 in
• Domestic/Import: Domestic
• Method of Manufacture: Molded
