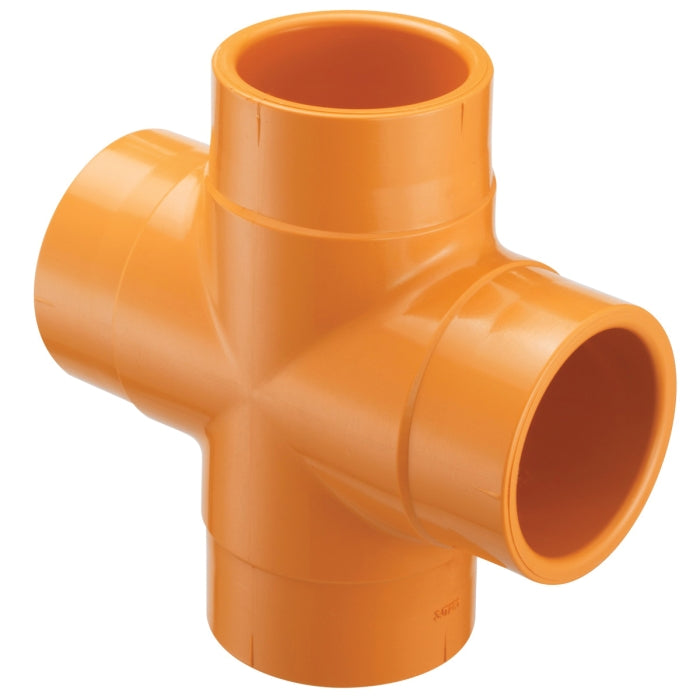

Spears 4220-012 1-1/4 CPVC FlameGuard Cross SOC

Product Description

The Spears 4220-012 is a 1-1/4 inch CPVC FlameGuard cross fitting designed for fire sprinkler systems. Constructed with high-quality CPVC material, it is suitable for both Schedule 40 and Schedule 80 applications.

• Corrosion-resistant materials help prevent biological growth.
• Designed for ease of installation and improved system hydraulics.
• UL listed and certified for potable water use.

Product Highlights

This fitting is part of the Spears FlameGuard product line, known for its durability and reliability in fire protection systems.

Product Information

Standard Information

• Manufacturer: Spears
• Material: CPVC

Technical Specifications

• Color: Orange
• Dimensions: 4-3/4 inches High
• End Style: Socket
• Nominal Size: 1-1/4 inches
• Pressure Rating: 175 psi
• Temperature Rating: 150 degrees Fahrenheit
• Method of Manufacture: Injection Molded
• Standards/Certifications: UL listed, LPCB, FM approved, NSF 14 and 61 certified, NFPA 13, 13R, 13D, and 24 standard
