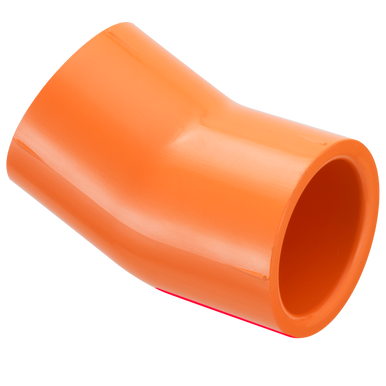

Spears 4216-007 3/4 cpvc flameguard 22-1/2 degree elbow

Product Description

The Spears 4216-007 FlameGuard CPVC 3/4 inch Socket 22-1/2 degree Elbow is a precision-molded directional fitting designed for small-angle offsets in CPVC fire sprinkler piping layouts. Constructed from fire-protection-grade CPVC, this fitting provides excellent strength, thermal stability, and long-term resistance to corrosion and scaling. Socket connections are solvent-cemented to create permanent, pressure-rated joints that comply with NFPA 13, 13R, and 13D standards. Its smooth internal surface minimizes pressure loss and promotes uniform flow through the system.

• Precision-molded directional fitting for small-angle offsets in CPVC fire sprinkler piping layouts.
• Constructed from FlameGuard fire-protection-grade CPVC, offering excellent strength, thermal stability, and resistance to corrosion and scaling.
• Socket connections are solvent-cemented for permanent, pressure-rated joints compliant with NFPA 13, 13R, and 13D standards.

Product Highlights

UL listed and FM approved for use in listed CPVC wet fire sprinkler systems, ensuring compliance and safety.

Product Information

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: 4216-007
• Country of Origin: USA

Technical Specifications

• Manufacturer Part Number: 4216-007
• Manufacturer: Spears
• Series: FlameGuard
• Material: Chlorinated Polyvinyl Chloride (CPVC)
• Fitting Type: Elbow
• Angle: 22.5 Degree
• Nominal Size: 3/4 inch
• End Style: Socket
• Method of Manufacture: Molded
• Origin: Domestic
• Pressure Rating: 175 PSI
• Temperature Rating: 150°F
• Certifications: UL Listed, FM Approved
• Color: Orange
