Spears 4202-209 G 1-1/2X1/2 CPVC FG HEAD TEE SOCXSOCXTHD

Product Description

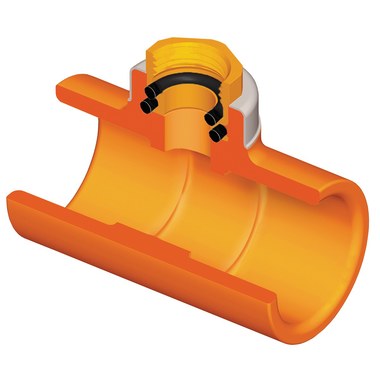

The Spears 4202-209G is a CPVC FG Head Tee designed for use in fire sprinkler systems. This product features a nominal size of one and one-half inches by one and one-half inches by one-half inch, with socket connections. The fitting is crafted from CPVC material, known for its durability and resistance to corrosion. It is molded with an elastomer seal to ensure a tight fit.

• Connection Type: Socket x Socket x FNPT Gasket
• Pressure rating: 175 psi
• Temperature rating: 150 degrees F

Product Highlights

The Spears 4202-209G fitting provides an efficient solution for fire protection applications. It offers easy installation and conforms to various certification standards, ensuring safety and reliability in critical systems.

Product Information

Standard Information

• Manufacturer: Spears
• Material: CPVC

Technical Specifications

• Nominal Size: 1-1/2 x 1-1/2 x 1/2 in
• Length: 3-3/4 in
• Fitting/Connector Type: Tee
• Seal Material: Elastomer
• Connection Size: 1-1/2 x 1-1/2 x 1/2 in
• Color: Orange
• Standards/Certifications: UL listed, FM approved, NSF certified
• Applications: For fire sprinkler systems
