Spears 4201-202 1-1/2X1-1/4X1 CPVC FG RED TEE SOC

Product Description

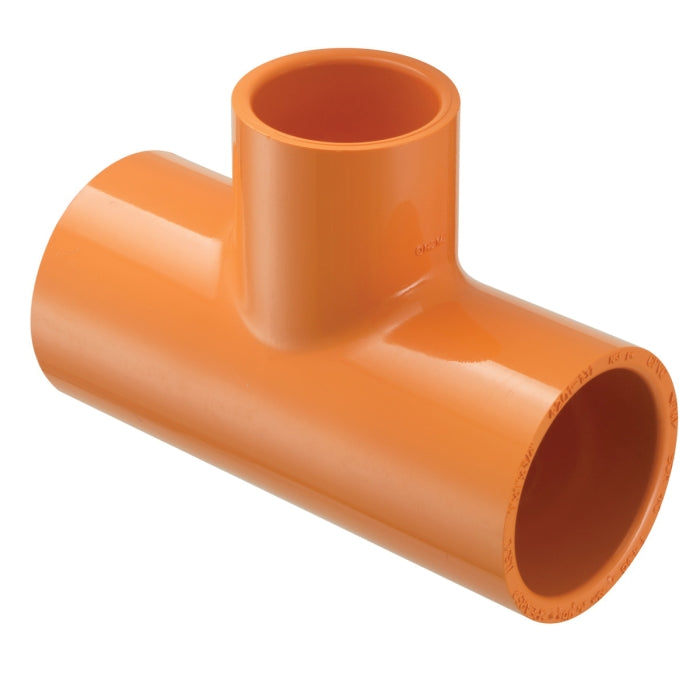

The Spears 4201-202 is a CPVC reducing tee fitting designed for fire protection applications. It features three connections measuring one and one-half inches, one and one-quarter inches, and one inch. The socket-style design allows for easy installation in standard piping systems.

• Manufactured by Spears for reliable performance.
• Constructed from CPVC for corrosion resistance.
• Serviceable for fire sprinkler systems.

Product Highlights

Spears FlameGuard CPVC products provide durable and effective solutions for fire protection. These fittings are suitable for high-temperature environments and are built to last.

Product Information

Standard Information

• MPN: 4201-202
• Manufacturer: Spears

Technical Specifications

• Nominal Size: 1-1/2 x 1-1/4 x 1 inches
• Length: 4-15/32 inches
• Color: Orange
• Material: CPVC
• Pressure Rating: 175 psi
• Temperature Rating: 150 degrees F
• Fitting/Connector Type: Tee
• Standards/Certifications: UL listed, FM approved
