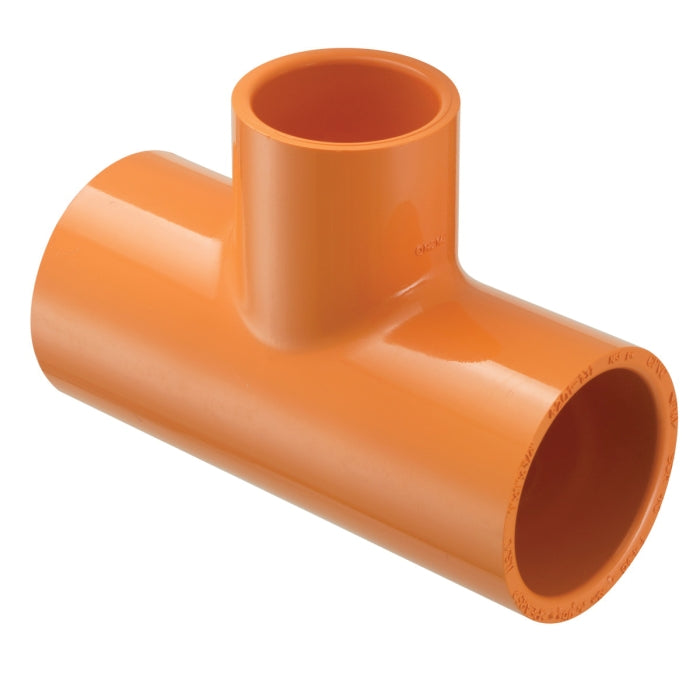

Spears 4201-159 1-1/4X1X1-1/4 CPVC FG RED TEE SOC

Product Description

The Spears 4201-159 is a CPVC flame guard reducing tee. This fitting is designed for use in fire sprinkler systems. It measures one and one-quarter by one by one and one-quarter inches and has a socket connection type. It is molded from CPVC with a length of four and eleven thirty-seconds inches. The product is rated for a maximum pressure of 175 psi and temperatures up to 150 degrees Fahrenheit.

• Constructed with corrosion-resistant CPVC material
• Designed for fire sprinkler systems
• Fitted for easy installation

Product Highlights

The Spears 4201-159 is suitable for fire sprinkler applications. It is UL listed and complies with industry standards for safety and reliability.

Product Information

Standard Information

• Manufacturer: Spears
• Material: CPVC

Technical Specifications

• Color: Orange
• Nominal Size: 1-1/4 x 1 x 1-1/4 in
• Connection Type: Socket
• Length: 4-11/32 in
• Pressure Rating: 175 psi
• Temperature Rating: 150 deg F
• Standards/Certifications: UL listed, NSF certified, FM approved
• Applications: For fire sprinkler systems
