Spears 4197-020 2 CTS CPVC UNION SOC EPDM

Product Description

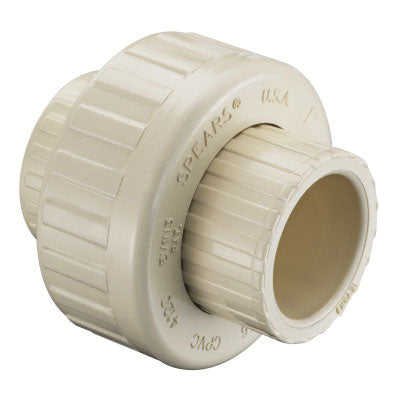

The Spears 4197-020 is a durable CPVC union fitting designed for fluid transfer in commercial applications. This product features a CTS socket end style and is made from high-quality CPVC material, ensuring longevity and reliability. The integrated EPDM seal enhances performance by providing leak resistance under pressure.

• Two-inch nominal size
• Pressure rated up to 100 psi
• Temperature rating of 180 degrees Fahrenheit

Product Highlights

This union is suitable for hot water applications and complies with ASTM standards.

Product Information

Standard Information

• Brand: Spears
• MPN: 4197-020

Technical Specifications

• Category: Union
• Material: CPVC
• O-Ring: Socket with EPDM O-ring Seal
• Size: 2 inches
• Pressure Rating: 100 psi
• Schedule Rating: SCH 40/STD
• Seal Material: EPDM
• Temperature Rating: 180 degrees Fahrenheit
• Domestic/Import: Domestic
• Fitting/Connector Type: Union
• Length: 3-31/32 inches
• Dimensions: 2-9/16 inches OD
