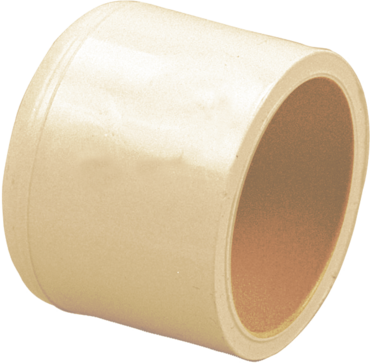

Spears 4147007 Cap CPVC (3/4 In Socket) 4147-007

Product Description

Spears 4147007 is a molded CPVC socket cap (MPN 4147007) designed to close Copper Tube Size (CTS) SDR-11 piping systems for hot and cold water distribution. The fitting is a nominal 3/4 in socket connection with a 7/8 in insertion length and overall dimensions approximately 1-3/32 in. It is pressure-rated 100 psi, temperature-rated 180 deg F, and manufactured to ASTM D2846 standards.

• Molded CPVC construction for CTS SDR-11 systems; nominal size 3/4 in, socket end
• Pressure rating 100 psi and temperature rating 180 deg F; 7/8 in insertion length
• Certified lead-free to NSF standards and listed to ASTM E84 for flame and smoke characteristics

Product Highlights

CPVC molded socket cap for 3/4 in CTS piping; 100 psi, 180 deg F; NSF lead-free

Product Information

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: 4147007
• Country of Origin: Domestic

Technical Specifications

• Brand: Spears
• Manufacturer: Spears Manufacturing
• Manufacturer Part Number: 4147007
• Alternate MPN: 4147-007
• UPC: 054211160954
• Series: 4147
• Material: CPVC
• Material Specification: ASTM D2846
• Nominal Size: 3/4 In (CTS)
• Connection Type: Socket
• End Style: Socket
• Fitting Type: Cap
• Classification: CTS
• Insertion Length: 7/8 In
• Dimensions: 1-3/32 In H
• Weight: 0.022 lb
• Pressure Rating: 100 psi
• Temperature Rating: 180 deg F
• Method of Manufacture: Molded
• Application: Hot and cold water distribution; commercial hot water
• Certifications: NSF 61; NSF 372; ICC listed to ASTM E84 (flame and smoke characteristics <25/50)
• Type: Pressure
