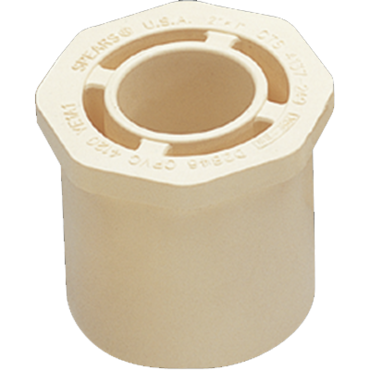

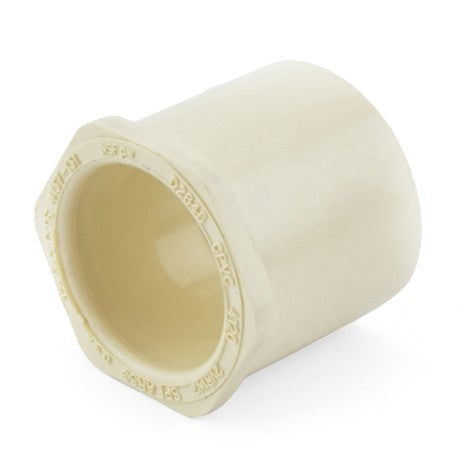

Spears 4137131 1 inches x 3/4 inches CTS CPVC Spigot x Socket Bushing (1 inches x 3/4 inches) 4137-131

Product Description

Spears 4137131 is a 1" x 3/4" CTS CPVC spigot x socket bushing that adapts 3/4" CTS CPVC pipe into a 1" socket fitting. The fitting is made from CPVC for CTS piping, is lead-free, and has continuous working pressure ratings of 100 psi at 180°F (82°C) and 400 psi at 73°F (23°C). It is manufactured to ASTM D2846, NSF certified for potable water, and suitable for SDR-11 CPVC piping. Used in CPVC plumbing systems to reduce or adapt pipe sizes.

• Spigot x socket connection adapts 3/4" CTS pipe into a 1" socket fitting
• Material: CPVC (CTS); lead-free; manufactured to ASTM D2846; NSF certified for potable water
• Temperature/pressure rating: 100 psi at 180°F (82°C); 400 psi at 73°F (23°C); suitable for SDR-11 piping

Product Highlights

CPVC spigot x socket bushing for 1" to 3/4" CTS piping; lead-free; NSF certified; 100 psi @ 180°F, 400 psi @ 73°F

Product Information

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: 4137131
• Country of Origin: United States

Technical Specifications

• Brand: Spears
• Manufacturer Part Number: 4137131
• Alternate Part Number: 4137-131
• Product Type: Bushing
• Product Name: 1" x 3/4" CTS CPVC Spigot x Socket Bushing
• Size: 1" x 3/4" (CTS)
• Connection Type: Spigot x Socket
• Material: CPVC (CTS)
• Lead Free: Yes
• Temperature/Pressure Rating: 100 psi at 180°F (82°C); 400 psi at 73°F (23°C)
• Standards: ASTM D2846
• Certifications: NSF certified for potable water use
• Suitable Pipe SDR: SDR-11
• Product Group: CPVC CTS Fittings
• Classification: CTS
• Connections: Socket (adapts 3/4" CTS pipe into 1" socket fitting)
• Country of Manufacture: Made in the USA
• Weight: 0.020 lb
