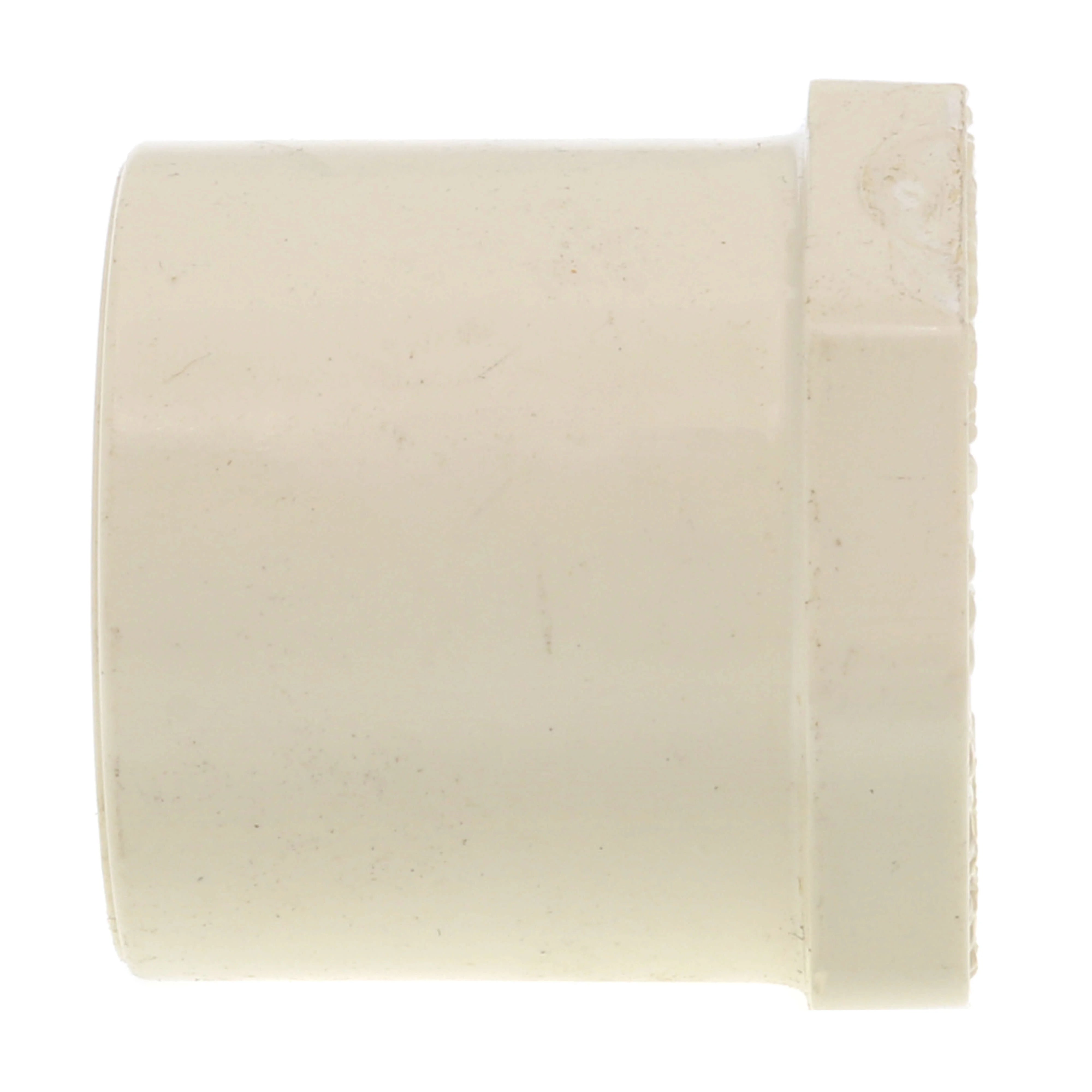

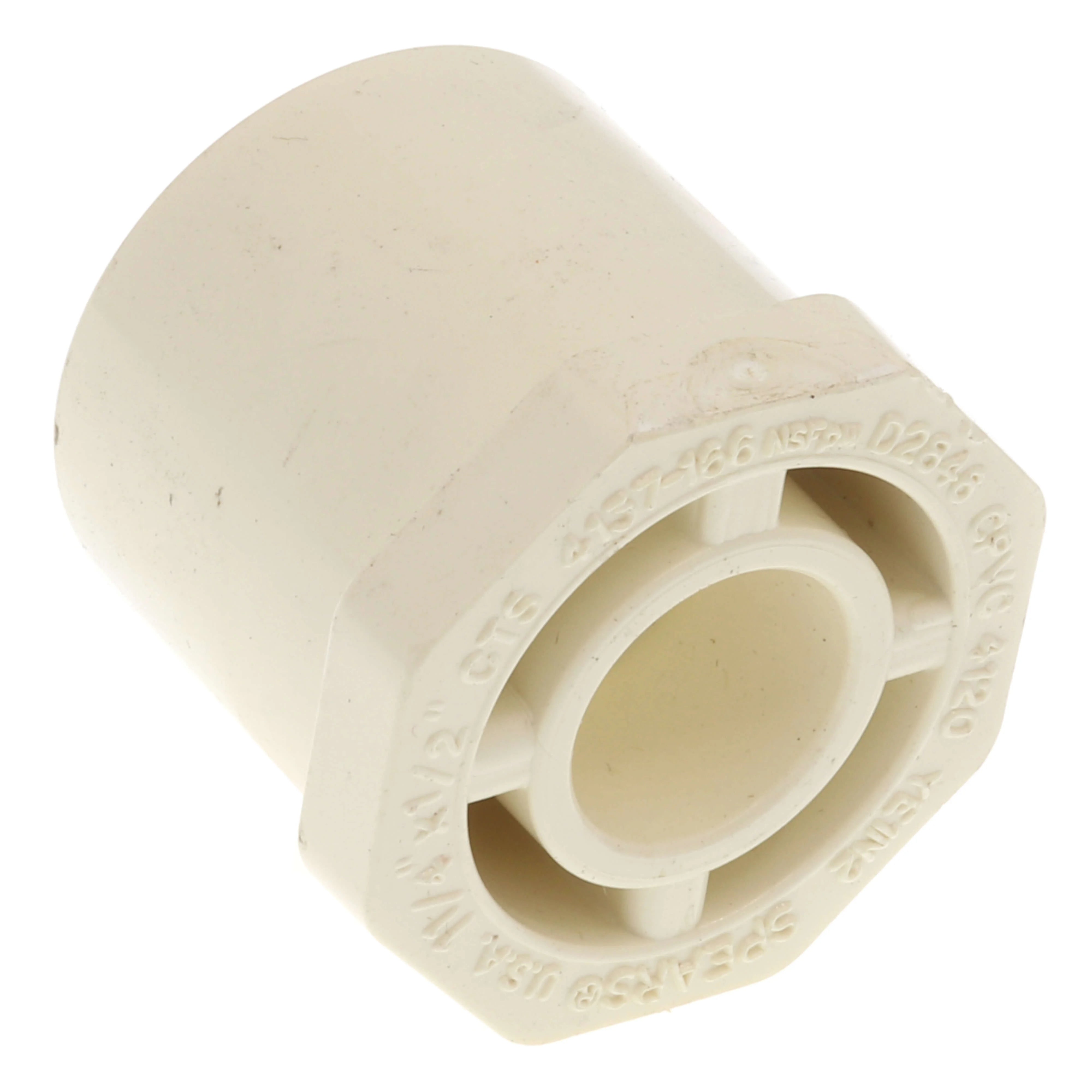

Spears 4137-166 1-1/4 in x 1/2 in CTS CPVC Spigot x Socket Bushing (1-1/4 in x 1/2 in)

Product Description

The Spears 4137-166 is a CPVC reducing bushing used to join a 1-1/4 inch CTS spigot to a 1/2 inch CTS socket. Molded from CPVC to ASTM D2846 and certified lead free, the fitting is rated for continuous service at 100 psi at 180°F and up to 400 psi at 73°F. It measures about 1-3/8 inch outside diameter and is intended for solvent-cemented CTS piping systems.

• Spigot x socket reducing bushing for 1-1/4 in to 1/2 in CTS connections
• Molded CPVC construction (ASTM D2846), lead free; temperature rating 180°F (82°C)
• Pressure ratings: 100 psi at 180°F (82°C) and 400 psi at 73°F (23°C); joining by solvent cement

Product Highlights

CTS CPVC reducing bushing, 1-1/4 in x 1/2 in, 100 psi at 180°F, approximately 1-3/8 in OD

Product Information

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: 4137166

Technical Specifications

• Brand: Spears
• Manufacturer Part Number: 4137-166
• Product Name: Reducing bushing, spigot x socket
• Material: CPVC (CTS)
• Material Specification: ASTM D2846
• Size: 1-1/4 in x 1/2 in
• Connection Type: Spigot x Socket
• Fitting Type: Reducing bushing
• Gender: Spigot x Socket (one male, one female)
• Length: 1-3/8 in
• Outside Diameter: 1-3/8 in OD
• Continuous Working Pressure: 100 psi at 180F (82C)
• Working Pressure at 73F: 400 psi at 73F (23C)
• Temperature Rating: 180F (82C)
• Lead Free: Yes
• Series: 4137
• Material Construction: Molded CPVC
• Joining Method: Solvent cement
• Certifications: NSF/ANSI 61; NSF 372; ICC listed to ASTM E84
• UPC: 054211107959
