Spears 4129007 3/4 Cpvc Cts Coupling Socket (3/4 in)

Product Description

Spears 4129007 is a 3/4 inch CPVC CTS coupling socket designed to join two sections of CPVC CTS pipe in a straight run. The molded socket x socket fitting measures approximately 1-9/16 inches in length with a 1-1/16 inch outside diameter and is manufactured to ASTM D2846 from type IV, grade I CPVC. It is rated for 100 psi at temperatures up to 180 deg F, NSF certified, lead-free, and suitable for hot and cold water distribution systems.

• Material and construction: CPVC (type IV, grade I), molded; manufactured to ASTM D2846

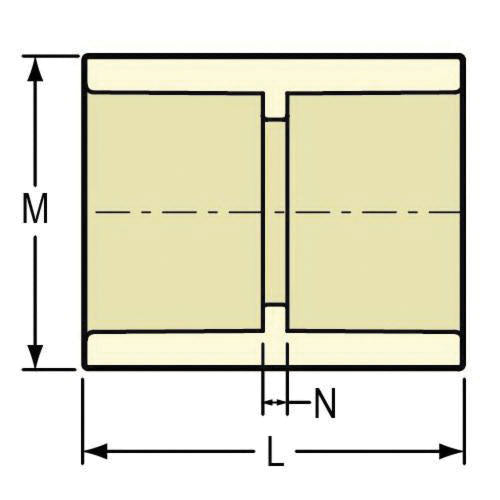

• Dimensions and connection: 3/4 in nominal CTS, socket x socket; length 1-9/16 in; OD 1-1/16 in
• Ratings and approvals: 100 psi at 180 deg F; NSF certified for potable water; lead-free; made in United States

Product Highlights

3/4 in CPVC CTS socket x socket coupling, 1-9/16 in length, 100 psi at 180 deg F, ASTM D2846, NSF certified

Product Information

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: 4129007
• Country of Origin: United States

Technical Specifications

• Brand: Spears
• MPN: 4129007
• Alternate MPN: 4129-007
• Nominal Size: 3/4 in (CTS)
• Connection Type: Socket x Socket (CTS)
• End Style: Socket
• Material: CPVC (Type IV, Grade I)
• Material Specification: ASTM D2846
• Length: 1-9/16 in
• Outside Diameter: 1-1/16 in
• Wall Thickness: 0.08 in (SDR 11)
• Pressure Rating: 100 psi at 180 deg F
• Pressure Rating at 73 deg F: 400 psi
• Temperature Rating: 180 deg F
• Working Pressure: 100 psi
• Certifications: NSF certified for potable water; Lead-free
• Country of Origin: United States
• Method of Manufacture: Molded
• Intended Use: Hot and cold water distribution / plumbing coupling
• Weight: 0.03 lbs
