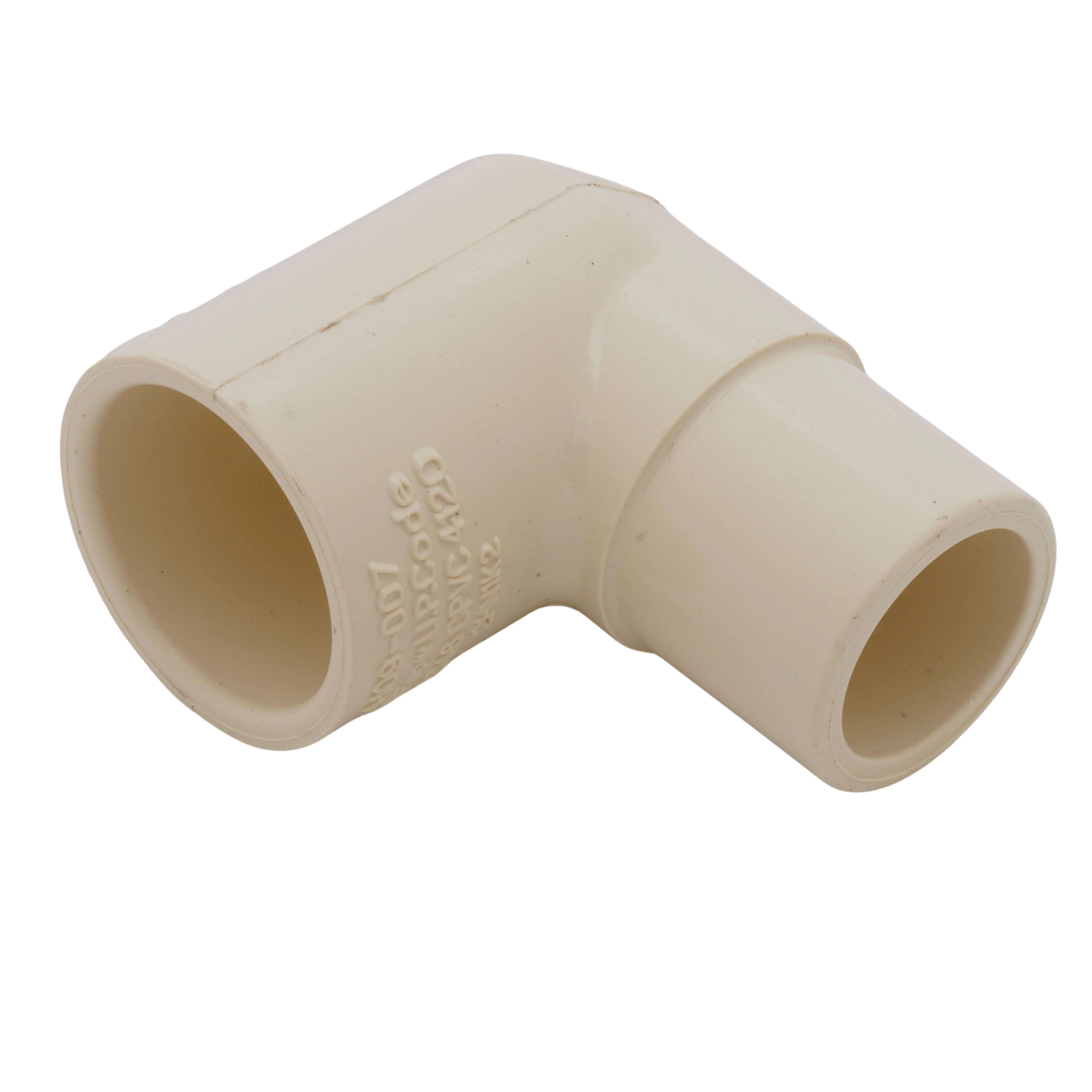

Spears 4109007 CPVC CTS 90 deg street elbow (3/4 in)

Product Description

The Spears 4109007 CPVC CTS 90 deg street elbow provides a spigot x socket connection for 3/4 in nominal CTS CPVC piping systems, enabling a 90-degree directional change in pressure piping. The molded CPVC fitting is manufactured to ASTM D2846 and is suitable for potable water use. It is lead-free, compatible with SDR-11 CPVC pipe, and rated for 100 psi at 180 deg F (400 psi at 73 deg F).

• Spigot x socket street elbow for 3/4 in nominal CTS CPVC piping; 90 deg change in direction
• Molded CPVC construction; EverTUFF series; manufactured to ASTM D2846; lead-free
• Temperature/pressure rating: 100 psi at 180 deg F; 400 psi at 73 deg F; NSF certified for potable water

Product Highlights

90 deg spigot x socket CPVC street elbow, 3/4 in CTS, ASTM D2846, NSF certified, 100 psi at 180 deg F

Product Information

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: 4109007
• Country of Origin: United States

Technical Specifications

• Brand: Spears
• Manufacturer: Spears Manufacturing
• Manufacturer Part Number: 4109007
• Alternate Part Number: 4109-007
• Product Group: CPVC CTS Fittings
• Type: 90 deg street elbow (spigot x socket)
• Nominal Size: 3/4 in (CTS)
• Connection Type: Spigot x Socket
• Angle: 90 deg
• Material: CPVC
• Series: EverTUFF
• Standards / Manufactured To: ASTM D2846
• Certification: NSF certified for potable water use
• Lead Free: Yes
• Compatible Pipe: SDR-11 CPVC piping
• Temperature/Pressure Rating: 100 psi at 180 deg F; 400 psi at 73 deg F
• Method of Manufacture: Molded
• Country of Origin: Made in the USA
