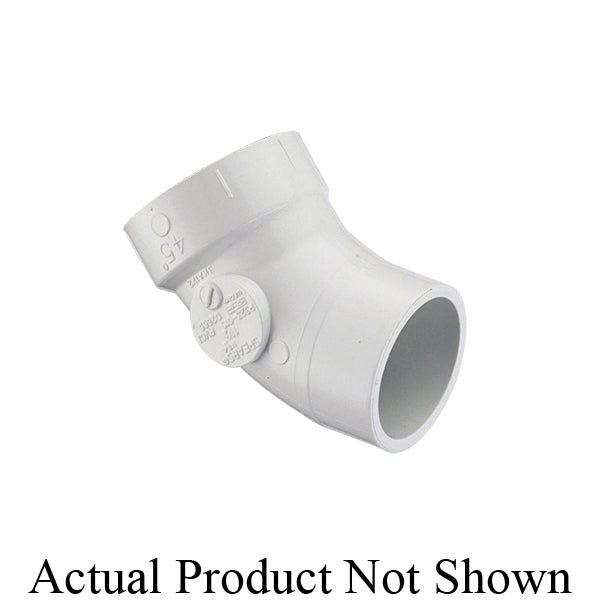

Spears 3727-100 45 Degree Pvc Elbow 10 in Sch 40

Product Description

The SPEARS 3727-100 is a 10-inch, 45-degree fabricated PVC elbow rated for Schedule 40 service. It features a spigot x socket end configuration, allowing it to connect directly to standard Schedule 40 PVC pipe and fittings without solvent-weld adapters on both ends. Manufactured domestically from white PVC using a fabrication process suited for large-diameter applications, this elbow is built to the dimensional standards expected for SCH 40/STD pressure piping systems. Licensed plumbers, pipefitters, and industrial pipe installers use fittings of this type in large-bore liquid conveyance systems where a 45-degree change of direction is required.

This elbow is intended for 10-inch nominal PVC piping systems operating within the pressure and temperature limits of Schedule 40 PVC. Typical installations include municipal water distribution, industrial process piping, irrigation mainlines, wastewater conveyance, and commercial plumbing infrastructure. The spigot end inserts into a mating socket fitting or pipe bell, while the socket end accepts a standard pipe spigot, giving the installer flexibility in how the fitting is oriented within the run.

Key Features

• 45-degree elbow geometry for gradual directional change in large-bore PVC runs
• 10-inch nominal size with spigot x socket end configuration for straightforward field assembly
• Schedule 40 / STD pressure rating compatible with standard SCH 40 PVC pipe systems
• Fabricated PVC construction suited to large-diameter fittings not typically injection-molded
• White PVC material; domestic manufacture

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 10-inch Schedule 40 PVC piping systems using spigot x socket connections in conformance with standard SCH 40/STD dimensional requirements.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable plumbing codes such as the IPC or local authority requirements. Depressurize and drain the piping system fully before cutting into an existing line. Solvent-cement both the spigot and socket joints using PVC primer and cement rated for the pipe schedule and service fluid; allow full cure time before pressurizing. Do not exceed the pressure and temperature derating limits published for Schedule 40 PVC at the system operating conditions.

Technical Specifications

• Fitting Type: 45 Degree Elbow
• Nominal Size: 10 inches
• End Style: Spigot x Socket
• Schedule Rating: SCH 40/STD
• Material: PVC
• Method of Manufacture: Fabricated
• Color: White
• Origin: Domestic

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: 3727-100
