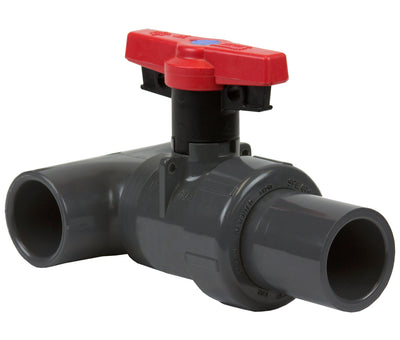

Spears 3639-010 1 PVC TU2K STDBV SOC/FPT FKM

Product Description

The Spears 3639-010 is a standard ball valve designed for reliable fluid control. It features a True Union design that allows for quick installation and maintenance. This valve has a nominal size of one inch and utilizes socket and FNPT connections. The PVC construction ensures resistance to corrosion and compatibility with various fluids.

• High pressure rating of 235 psi.
• Temperature rating up to 140 degrees Fahrenheit.
• FKM softgoods provide durability and long-lasting performance.

Product Highlights

The Spears 3639-010 is ideal for use in plumbing applications where reliability is essential. It supports various fittings and is suitable for both residential and commercial use.

Product Information

Standard Information

• Manufacturer: Spears
• Item Number: 3639-010

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: PVC
• Body Material: PVC
• Color: Gray
• Domestic/Import: Domestic
• End Style: Socket and FNPT
• Inlet to Outlet Length: 5-1/8 inches
• Nominal Size: 1 inch
• Pressure Rating: 235 psi
• Series: True Union 2000
• Softgoods Material: FKM
• Temperature Rating: 140 degrees Fahrenheit
• Top to Inlet Center: 2-5/16 inches
• Trim Material: PVC Stem and PTFE Seat
• Type: Standard
