Spears 3639-007C 3/4 CPVC TU2K STDBV SOC/FPT FKM

Product Description

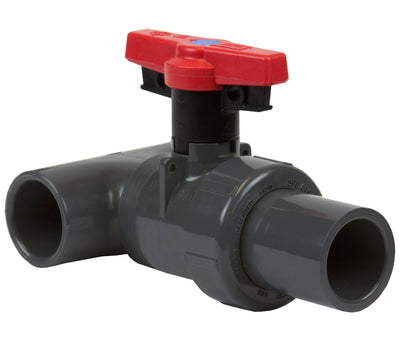

The Spears 3639-007C is a 3/4 inch CPVC true union standard ball valve. It features socket and FNPT end styles, suitable for a range of plumbing applications. The valve has a pressure rating of 235 psi and operates effectively at temperatures up to 200 degrees Fahrenheit. Designed for durability, it includes a T-handle actuator and is made from high-quality CPVC material with FKM softgoods.

• High pressure rating of 235 psi
• Compatible with socket and FNPT connections
• Made from CPVC with FKM softgoods

Product Highlights

This valve includes a self-adjusting floating seat that ensures reliable performance. It is NSF certified for potable water use, making it suitable for various plumbing systems. The Spears Safe-T-Shear stem design enhances safety and reliability for long-term use.

Product Information

Standard Information

• Brand: Spears
• MPN: 3639-007C

Technical Specifications

• Nominal Size: 3/4 inch
• Body Material: CPVC
• Ball Material: CPVC
• End Style: Socket and FNPT
• Inlet to Outlet Length: 4-13/16 inches
• Top to Inlet Center: 1-31/32 inches
• Temperature Rating: 200 degrees Fahrenheit
• Pressure Rating: 235 psi
• Softgoods Material: FKM
• Trim Material: CPVC stem and PTFE seat
• Series: True Union 2000
• Domestic/Import: Domestic
