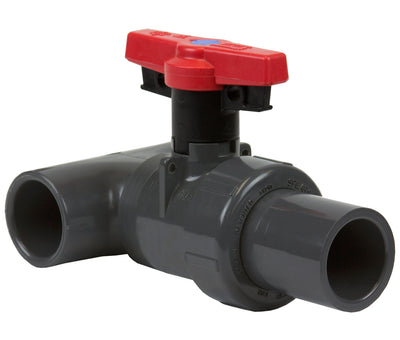

Spears 3639-005C 1/2 CPVC TU2K STDBV SOC/FPT FKM

Product Description

The Spears 3639-005C is a 1/2 inch True Union 2000 standard ball valve designed for socket and FNPT connections. This valve features a CPVC body and FKM softgoods, making it suitable for a variety of plumbing applications. Its compact size and reliable construction offer effective flow control in both residential and commercial settings.

• Standard Series: True Union 2000
• Pressure Rating: 235 psi
• Temperature Rating: 200 degrees Fahrenheit

Product Highlights

The valve is equipped with Spears Safe-T-Shear stem for enhanced safety, a self-adjusting floating seat, and EPDM NSF certified for potable water use. It ensures high performance with replaceable seats and allows for future system upgrades thanks to its durable design.

Product Information

Standard Information

• Manufacturer: Spears
• MPN: 3639-005C

Technical Specifications

• Nominal Size: 1/2 inch
• Pressure Rating: 235 psi
• Temperature Rating: 200 degrees Fahrenheit
• Body Material: CPVC
• Ball Material: CPVC
• Softgoods Material: FKM
• End Style: Socket and FNPT
• Actuator Type: T-Handle
• Inlet to Outlet Length: 4-3/16 inches
• Top to Inlet Center: 1-5/8 inches
• Domestic/Import: Domestic
