Spears 3621-025 2-1/2 PVC TU2K STANDARD BV THD EPDM

Product Description

Spears 3621-025 is a ball valve designed for various plumbing applications. This valve features a true union design and is made from durable materials such as PVC and EPDM. It has a nominal size of two and a half inches and includes FNPT end style connections. This valve supports a pressure rating of 150 psi and operates effectively at temperatures up to 140 degrees Fahrenheit.

• Constructed with PVC body and stem
• Safe-T-Shear stem for enhanced safety
• NSF certified EPDM material for potable water

Product Highlights

This valve is ideal for those needing reliable flow control in various systems, allowing for easy maintenance and upgrades. The self-adjusting floating seat ensures a good seal over time.

Product Information

Standard Information

• Brand: Spears
• Type: True Union 2000 Standard

Technical Specifications

• MPN: 3621-025
• Nominal Size: 2-1/2 inches
• Body Material: PVC
• Actuator Type: T-Handle
• Pressure Rating: 150 psi
• Temperature Rating: 140 degrees Fahrenheit
• Compatible Softgoods Material: EPDM

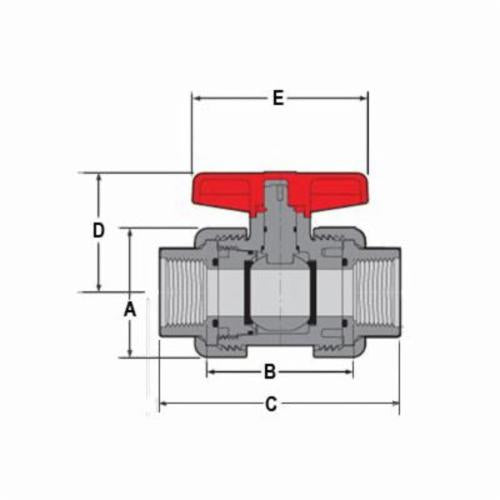

• Inlet to Outlet Length: 9-11/16 inches
• Top to Inlet Center: 5-7/8 inches
