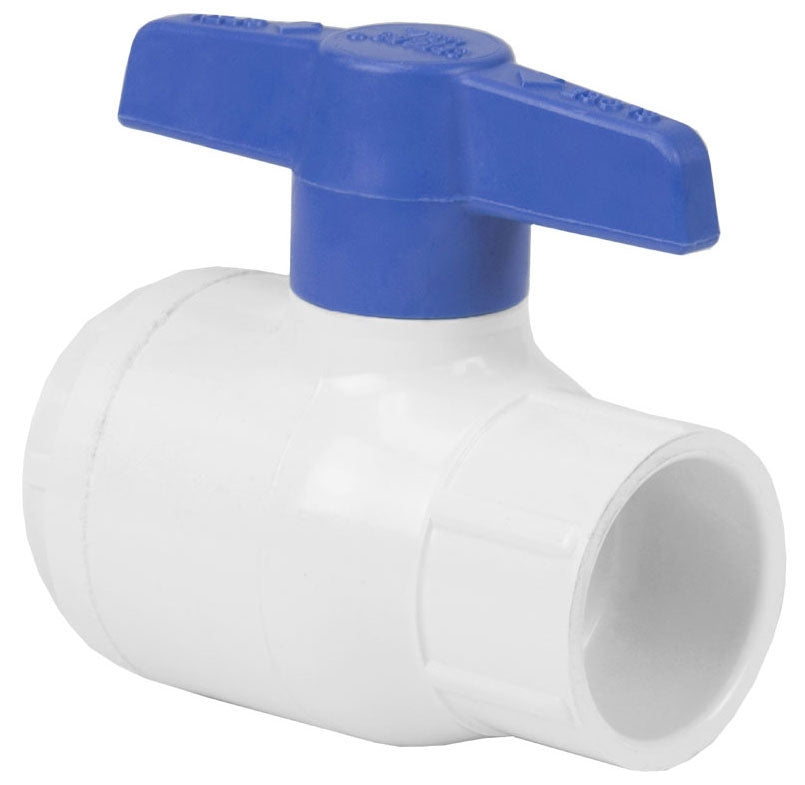

Spears 2622-060 Utility Ball Valve 6 Inch Socket EPDM

Product Description

The Spears Manufacturing 2622-060 is a utility ball valve made from durable PVC. This valve features a nominal size of six inches and socket connections, ideal for various plumbing and irrigation applications.

• Full port design for unrestricted flow
• High impact polypropylene handle for easier operation
• Rated for 150 PSI and up to 140 degrees Fahrenheit

Product Highlights

This utility ball valve is particularly suitable for general purpose, OEM, and vacuum service applications.

Product Information

Standard Information

• Brand: Spears Manufacturing
• MPN: 2622-060

Technical Specifications

• Actuation Type: 1/4 Turn Lever Handle
• Nominal Size: 6 Inch
• End Connection: Socket x Socket
• Inlet to Outlet Length: 14-3/16 Inch
• Ball Material: ASTM D1784 Type 1 Class 12454 Molded PVC
• Body Material: ASTM D1784 Type 1 Class 12454 Molded PVC
• Stem Material: ASTM D1784 Type 1 Class 12454 Molded PVC
• Seat Material: PTFE/HDPE
• Seal Material: EPDM O-Ring
• Handle Material: High Impact Polypropylene
• Port Type: Full
• Temperature Rating: 140 Deg F
• Pressure Rating: 150 PSI at 73 Deg F
• Inclusions/Features: Double Stop Engagement
• Applicable Standard: NSF
• Color: White
• Schedule: 80
