Spears 2622-020G 2 PVC Utility Ball Valve SOC EPDM

Product Description

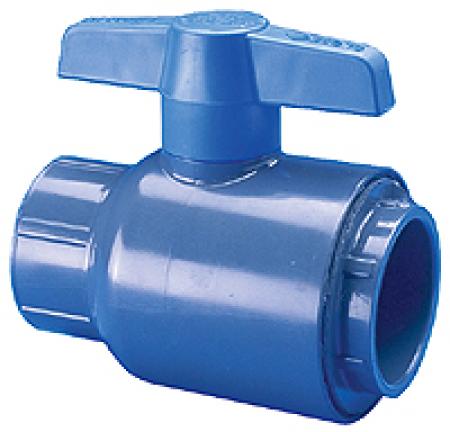

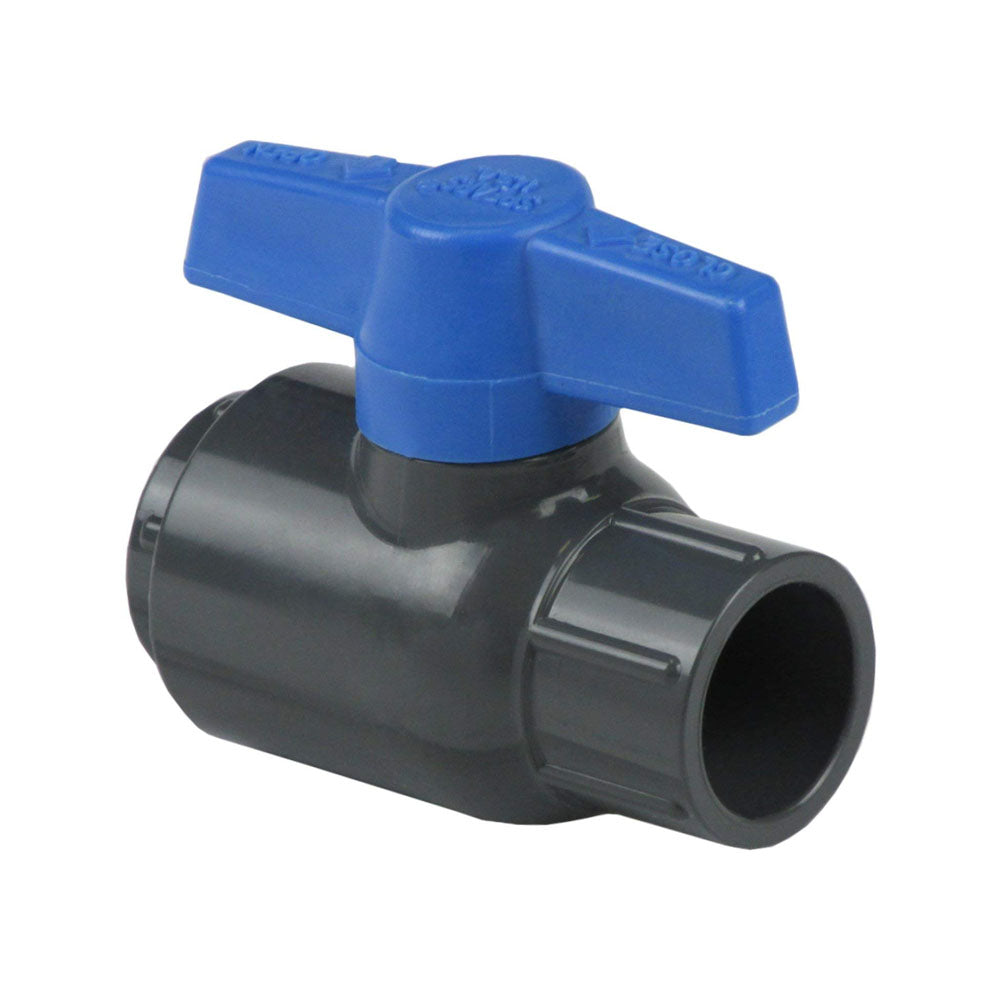

The Spears Utility Ball Valve, model number 2622-020G, measures two inches nominal size and features socket ends. This valve is suited for various applications, including irrigation, pool, and spa systems. It operates effectively at a pressure rating of one hundred fifty psi and a temperature rating of one hundred forty degrees Fahrenheit. The T-handle actuator allows for easy operation. The valve body and trim are composed of PVC, ensuring durability in demanding conditions.

• PVC construction with EPDM O-ring for reliable sealing
• Standard configuration for utility applications
• Offers a full Schedule eighty bore for better flow

Product Highlights

Designed for high performance, the Spears 2622-020G Utility Ball Valve is a trusted choice in plumbing and utility tasks.

Product Information

Standard Information

• Manufacturer: Spears
• MPN: 2622-020G

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: PVC
• Body Material: PVC
• Color: Gray
• Domestic/Import: Domestic
• End Style: Socket

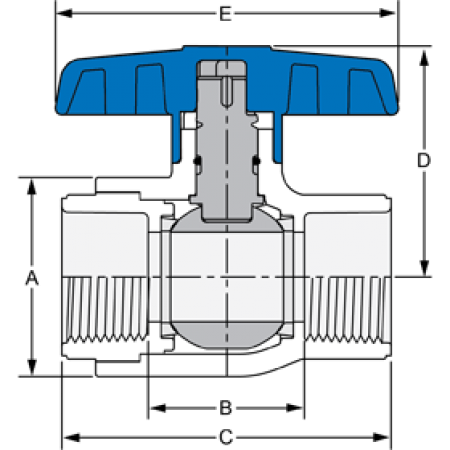

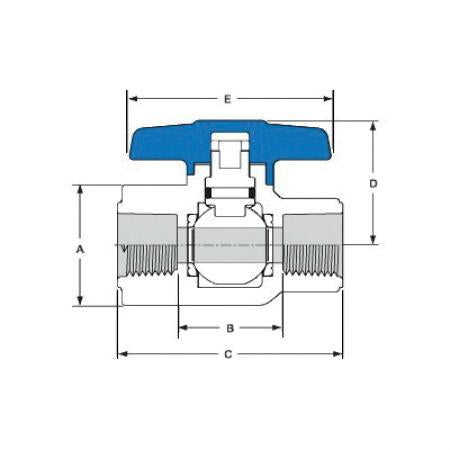

• Inlet to Outlet Length: 5-3/16 inches
• Nominal Size: 2 inches
• Pressure Rating: 150 psi
• Softgoods Material: EPDM
• Temperature Rating: 140 degrees Fahrenheit
• Top to Inlet Center: 3-7/8 inches
• Trim Material: PVC Stem
