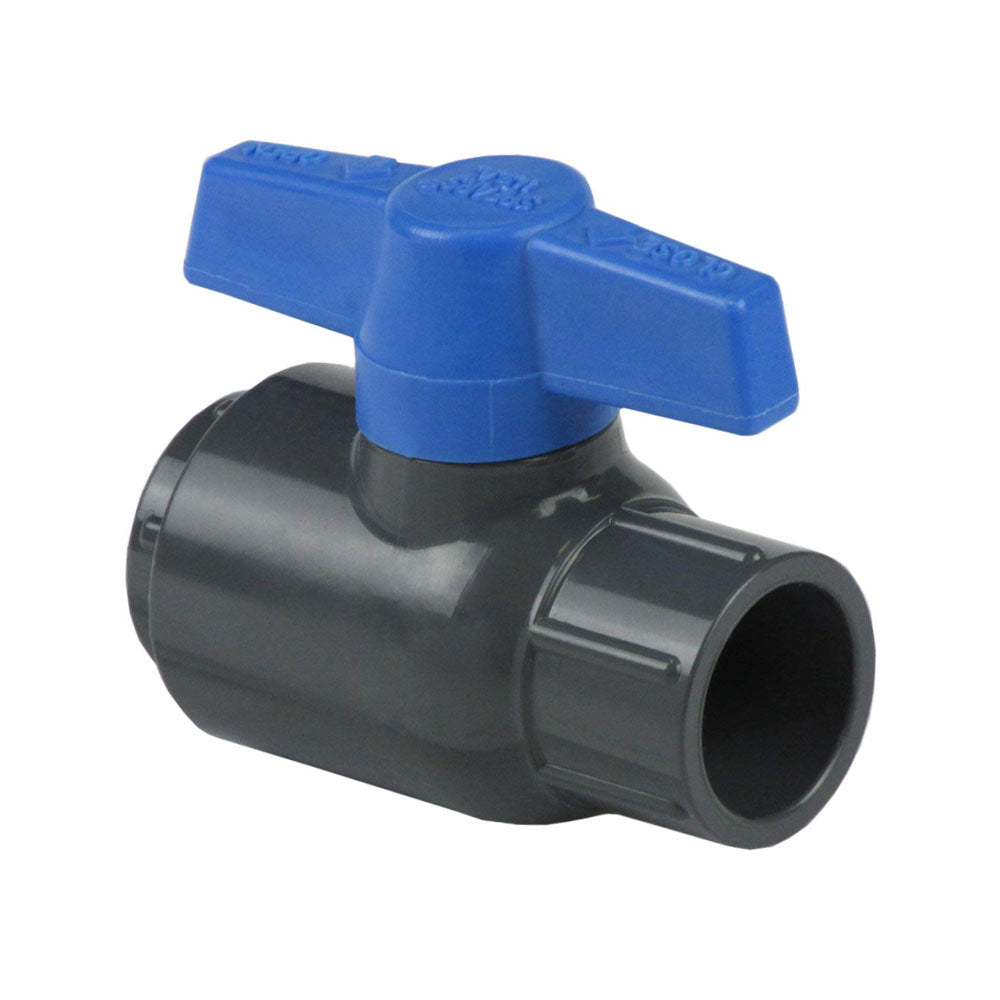

Spears 2622-012G 1-1/4 PVC Utility Ball Valve SOC EPDM

Product Description

The Spears Utility Ball Valve model 2622-012G is a one and one-fourth inch PVC valve designed for socket connections with an EPDM o-ring seal. This valve operates at a maximum pressure of one hundred fifty psi and can handle temperatures up to one hundred forty degrees Fahrenheit. It features a T-handle actuator for easy operation and is suitable for various plumbing applications.

• Socket end style for secure connections
• Constructed from PVC, suitable for pressure applications
• Compatible with Schedule 80 piping for high-pressure needs

Product Highlights

The Spears Utility Ball Valve is reliable for plumbing systems requiring durable and effective flow control. It is used in residential and commercial applications, including irrigation and water supply lines.

Product Information

Standard Information

• Brand: Spears
• MPN: 2622-012G

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: PVC
• Body Material: PVC
• Color: Gray
• Domestic/Import: Domestic
• End Style: Socket

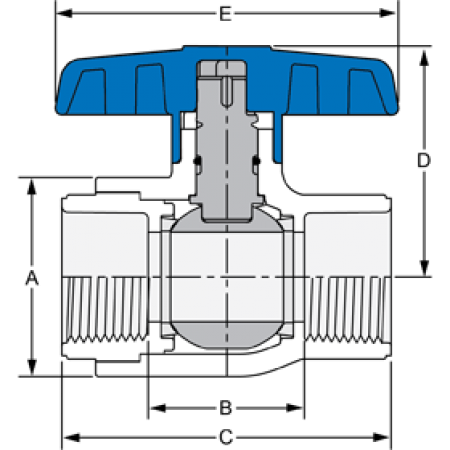

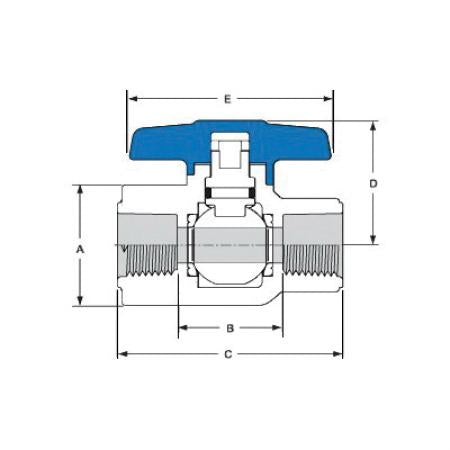

• Inlet to Outlet Length: 3-7/8 inches
• Nominal Size: 1-1/4 inches
• Pressure Rating: 150 psi
• Softgoods Material: EPDM
• Temperature Rating: 140 degrees Fahrenheit
• Top to Inlet Center: 2-13/16 inches
• Trim Material: PVC Stem
