Spears 2622-010G 1 PVC Utility Ball Valve SOC EPDM

Product Description

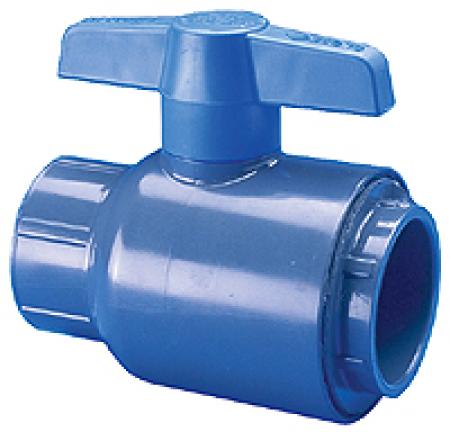

The Spears Utility Ball Valve, MPN 2622-010G, is a one inch nominal valve designed for reliable shut-off in various applications. This valve features socket end connections and is rated for up to 150 psi and 140 degrees Fahrenheit. The T-handle actuator allows for easy operation while the PVC body ensures durability and resistance to corrosion.

• Compatible with schedule 80 PVC pipes
• EPDM O-ring provides a secure seal
• Designed for irrigation, pool, and general plumbing applications

Product Highlights

This ball valve is suitable for high-pressure settings typically found in irrigation systems and pools. Its construction minimizes wear and tear, ensuring long-term reliability.

Product Information

Standard Information

• Brand: Spears
• MPN: 2622-010G

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: PVC
• Body Material: PVC
• End Style: Socket
• Nominal Size: 1 inch
• Pressure Rating: 150 psi
• Temperature Rating: 140 degrees Fahrenheit

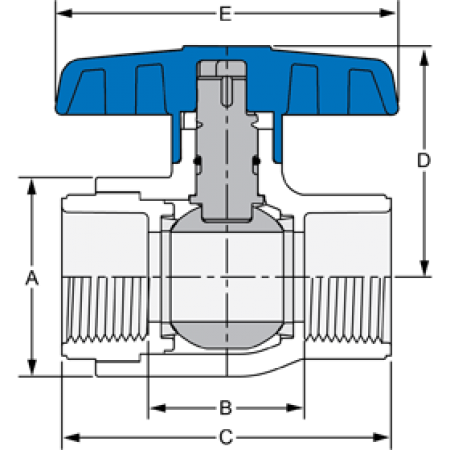

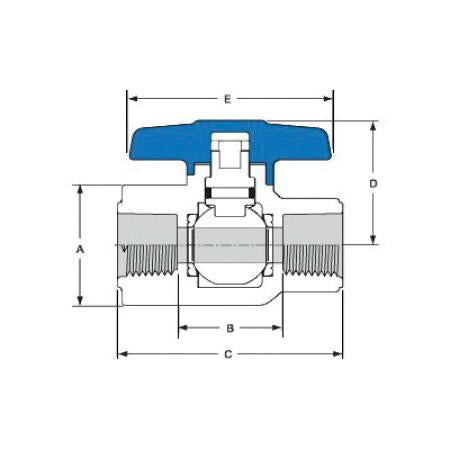

• Inlet to Outlet Length: 3-3/8 inches
• Top to Inlet Center: 2-3/8 inches
• Softgoods Material: EPDM
• Color: Gray
