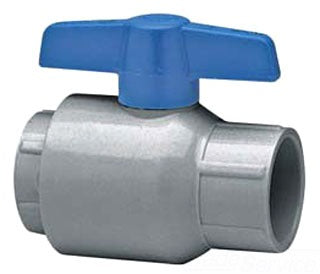

Spears 2622-010C 1 SXS Schedule 80 CPVC Full Port Ball Valve With EPDM O-Rings

Product Description

The Spears Mfg 2622-010C is a one inch schedule 80 CPVC full port ball valve with EPDM O-rings. This valve is designed for reliable performance in various plumbing applications. It operates effectively at a pressure rating of 150 psi, making it suitable for both commercial and residential uses.

• Supports a maximum pressure of 150 psi.
• Constructed with durable CPVC material for longevity.
• Includes EPDM O-rings for leak-free sealing.

Product Highlights

This valve is ideal for water distribution, irrigation systems, and chemical processing.

Product Information

Standard Information

• Brand: Spears Mfg
• MPN: 2622-010C

Technical Specifications

• Nominal Size: 1 in
• Pressure Rating: 150 psi
• Temperature Rating: 200 deg F
• Inlet to Outlet Length: 3-3/8 in
• Top to Inlet Center: 2-3/8 in
• Actuator Type: T-Handle
• Ball Material: CPVC
• Body Material: CPVC
• End Style: Socket
• Softgoods Material: EPDM
• Trim Material: CPVC Stem and PTFE Seat
• Domestic/Import: Domestic
• Color: Gray
