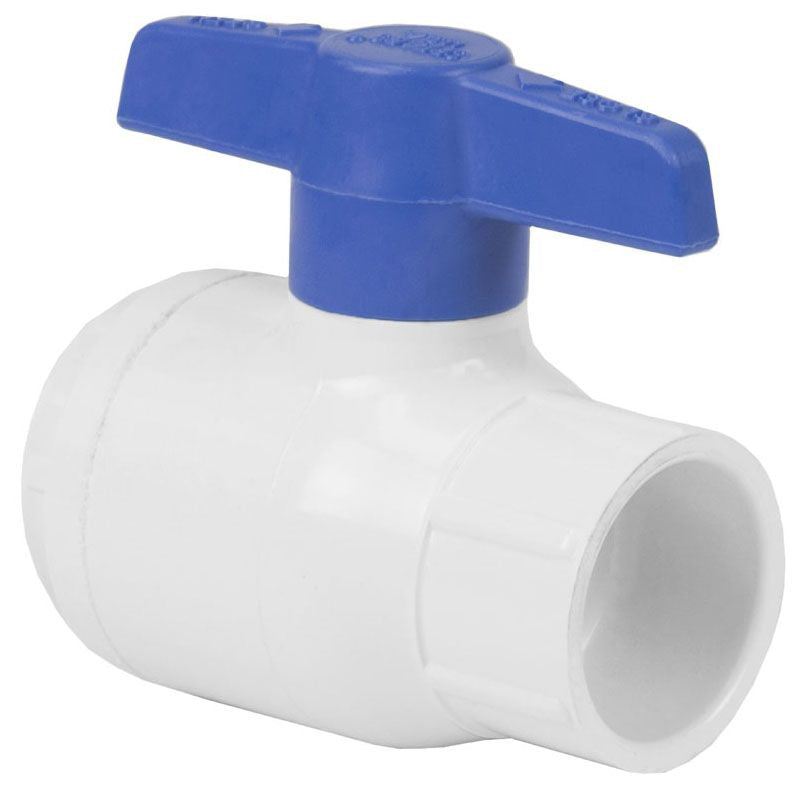

Spears 2622-007 3/4 Utility Ball Valve Socket EPDM

Product Description

The Spears Manufacturing 2622-007 is a reliable 3/4 inch utility ball valve designed for various applications. This valve features a PVC body and is suitable for use with potable water, irrigation systems, lawn sprinklers, pools, spas, and general water management. The nominal size of the valve is three-quarters of an inch. It has socket connections on both ends, ensuring straightforward installation. The full bore design minimizes pressure drop and maximizes flow efficiency.

• Actuation Type: 1/4 Turn, T-Handle
• Pressure Rating: 150 PSI
• Temperature Rating: 73 Degrees Fahrenheit

Product Highlights

This valve has a robust construction, making it chemical and corrosion resistant, ideal for multiple fluid transport applications in residential or commercial settings.

Product Information

Standard Information

• Manufacturer: Spears Manufacturing
• Model Number: 215

Technical Specifications

• Type: Full Bore, Utility
• Material: PVC with EPDM O-Ring
• Ball Material: PVC
• Body Material: PVC
• Seat Material: PTFE/HDPE
• Handle Material: Polypropylene
• End Connections: Socket x Socket
• Port Type: Full
• End to End Distance: 2-15/16 inches
• Applicable Standards: NSF, ISO 9001
• Color: White
• Schedule: 80
