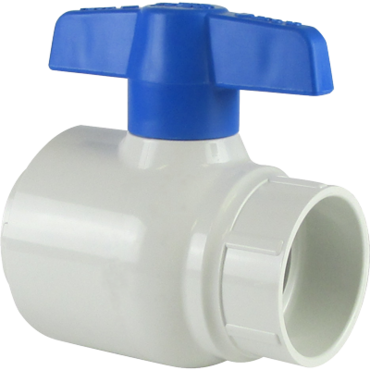

Spears 2621-030 Utility Ball Valve 3 in Threaded EPDM

Product Description

The Spears 2621-030 utility ball valve is a 3 inch nominal, FNPT valve with a pressure rating of 150 psi and a maximum temperature of 140 deg F. It features a T-handle actuator, PVC ball and body, and EPDM seals. This valve is designed for irrigation, pool and spa, and general-purpose applications.

• PVC white, PVC gray or CPVC construction
• 1-piece sealed unit
• Full SCH 80/XH bore

Product Highlights

This Spears utility ball valve is a chemical and corrosion-resistant valve with a high-impact polypropylene handle.

Product Information

Standard Information

• Brand: Spears
• Manufacturer Part Number: 2621-030
• Country of Origin: Domestic

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: PVC
• Body Material: PVC
• Color: White
• Domestic/Import: Domestic
• End Style: FNPT
• Inlet to Outlet Length: 8 in
• Nominal Size: 3 in
• Pressure Rating: 150 psi
• Softgoods Material: EPDM
• Temperature Rating: 140 deg F
• Top to Inlet Center: 5-9/16 in
• Trim Material: PVC Stem
• Manufacturer: Spears
• Brand: Spears
• Category: Ball Valve
• Contruction: Threaded Ends
• Size: 3 in
• Subcategory: Lab Ball Valves & Utility Ball Valves & CWV Ball Valves
• Type: Ball Valve
• Material: PVC
• Product Group: Compact & Single Union Ball
• Manufacturer's part number: 2621-030
• Connections: FPT
• Seals: EPDM
• UPC: Does not apply
• Country of Origin: United States
• Actuation: Manual
• Connection Type: Threaded
• Gender: Female
• Pipe Size: 3 IN
• Seal Material: EPDM
• Threading: IPS
• Valve Type: Ball Valve
